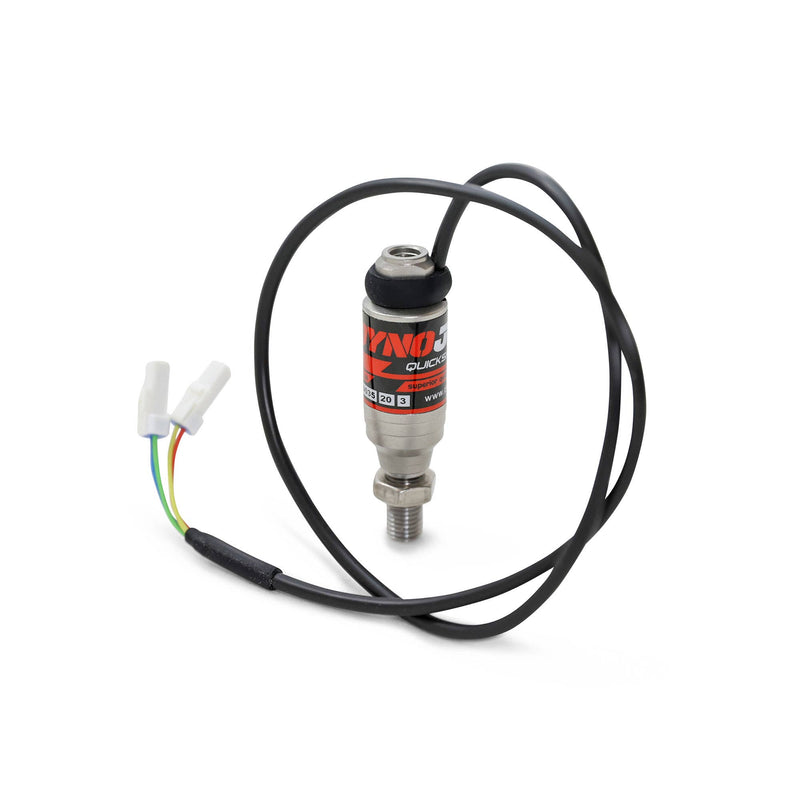

Dynojet Dual Contact Quickshifter Sensor (4-130)
Power Commander Quick Shifter
Normally during "up shifting" you must roll off of the throttle and pull in the clutch in order to engage the next higher gear. In racing (both drag and road race), split seconds count. Rolling off the throttle, even slightly, slows your times and can be the difference between winning and losing. The Dynojet Quick Shifter (DQS) allows full throttle, clutch less shifting. This is done by momentarily cutting the fuel and or ignition, which unloads the transmission. During this time, the rider can shift up to the next gear without rolling off the throttle or using the clutch.
2 Switches to activate Quick Shifter
The Power Commander incorporates all of the Quick Shifter functionality in with the main fuel controller and is fully programmable*. No cutting or splicing of your bike's wiring harness is necessary. The amount of "kill time" is adjustable by the user via the provided software. The user can also set a minimum rpm for the system to function. This keeps the system from activating at too low of an rpm, such as low speed road riding.
*Note: Certain bikes require an ignition module for Quick Shifter functionality.

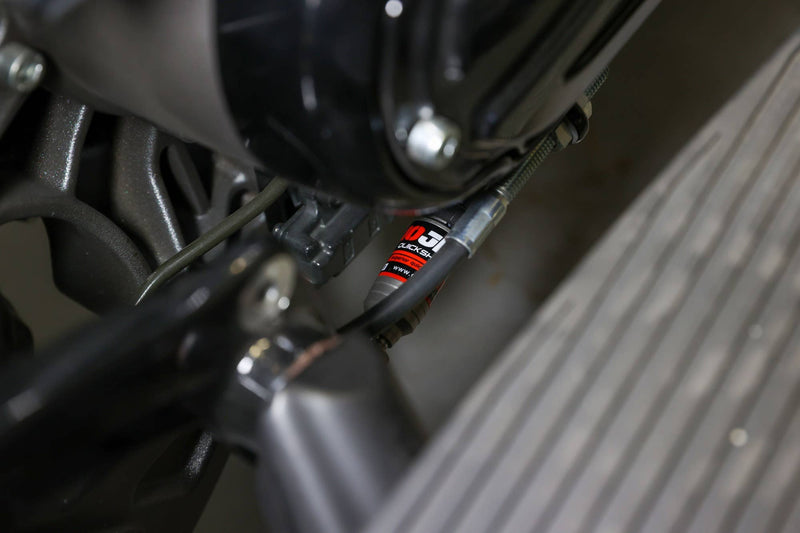

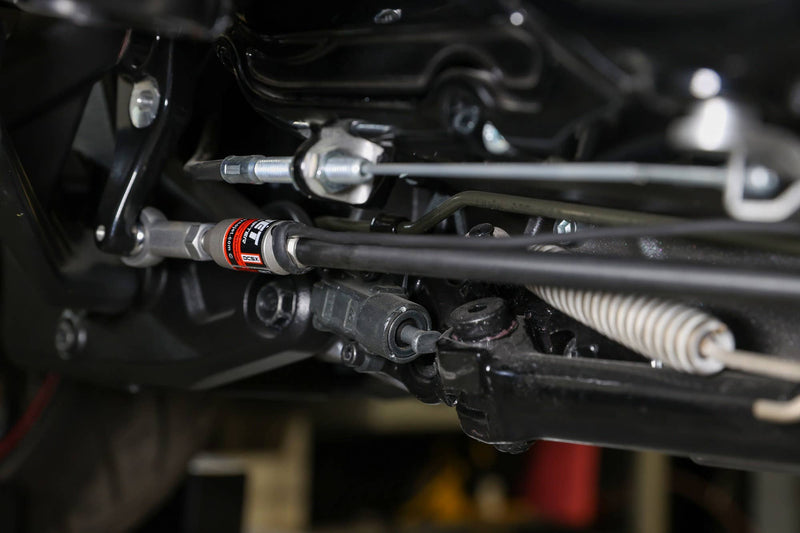

Shift Rod Pressure/Tension Sensor - This universal sensor mounts inline with the shift rod. The customer must provide the appropriate "length and thread" shift rod. This sensor is available in both "push" and "pull" styles depending on the direction the shift rod moves during an up shift. For most applications, a Shift Rod Kit is available.
Linear Travel Sensor Kit - For applications where a bike does not have a shift rod, or the Shift Rod Sensor will not fit, we offer a Linear Travel Sensor. One end of this sensor is mounted to the shift lever itself and the other to a fixed point on the chassis. This sensor is available in both "push" and "pull" style to suit all installations. A universal mounting kit is included.
Bundling with Power Commander III USB
To activate the quickshifter feature in your PCIII you need to run this software (download link below). You will need to make sure your current Firmware in the PCIII is 126.96.36.199 or higher.
