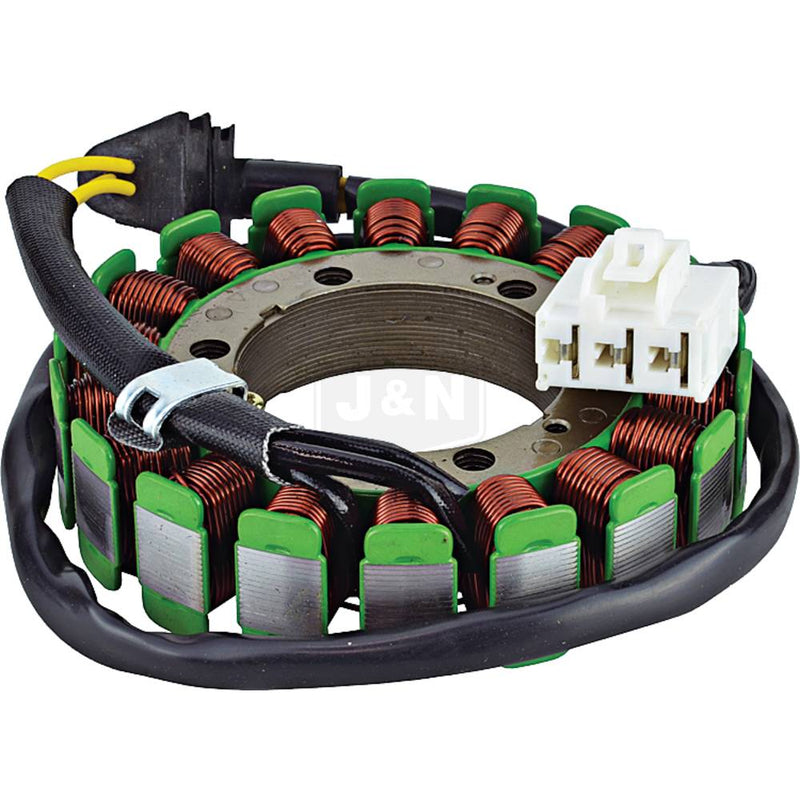

Arrowhead - New AEP Charging Stator - Honda CBR900RR 00-01 - Superseded from 6-AHA4053 (6-34058051)

Arrowhead - New AEP Charging Stator - Honda CBR900RR 00-01 - Superseded from 6-AHA4053 (6-34058051)

Save 5% Save 5%
$255.75
$255.75 - $255.75
$255.75
$242.96
$242.96 - $242.96
$242.96

Replacement stator for the specified vehicle electrical system. Check the part number, mounting layout and connector arrangement against the original assembly.

Part number: 6-34058051.

Catalogue part number: 340-58051.

Catalogue specifications:

  • Volt: 12
  • Lam Stack ID: 2.108"
  • Lam Stack ID: 53.550mm
  • Lam Stack OD: 115.980mm
  • Lam Stack OD: 4.566"
  • Lam Stack Thickness: 1.132"
  • Lam Stack Thickness: 28.750mm
  • Mounting Holes 6 - 6.7mm @(1) 3-Pin Plug @Harness is 100mm From Stator to Double Grommet @Harness is 540mm From the End of the Elbow to the End of the Plug Housing
