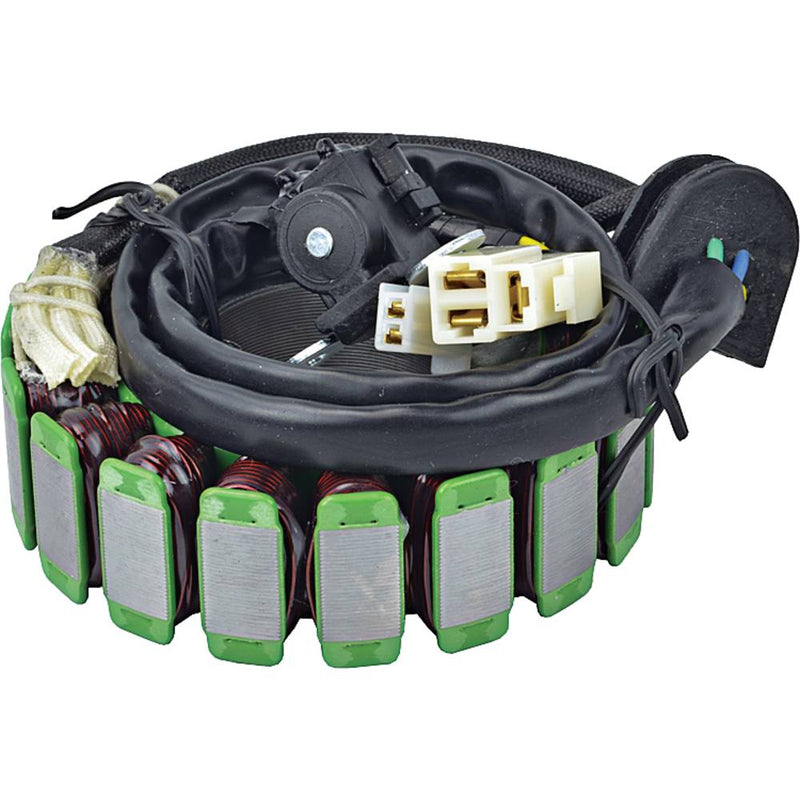

Arrowhead - Stator - Suzuki B-King, Hyabusa (6-34058145)

Arrowhead - Stator - Suzuki B-King, Hyabusa (6-34058145)

Save 5% Save 5%
$579.65
$579.65 - $579.65
$579.65
$550.67
$550.67 - $550.67
$550.67

Replacement stator for the specified vehicle electrical system. Check the part number, mounting layout and connector arrangement against the original assembly.

Part number: 6-34058145.

Catalogue part number: 340-58145.

Catalogue specifications:

  • Volt: 12
  • Lam Stack ID: 1.657"
  • Lam Stack ID: 42.100mm
  • Lam Stack OD: 103.800mm
  • Lam Stack OD: 4.087"
  • Lam Stack Thickness: 1.213"
  • Lam Stack Thickness: 30.800mm
  • Includes Magnetic Pick Up Coil
