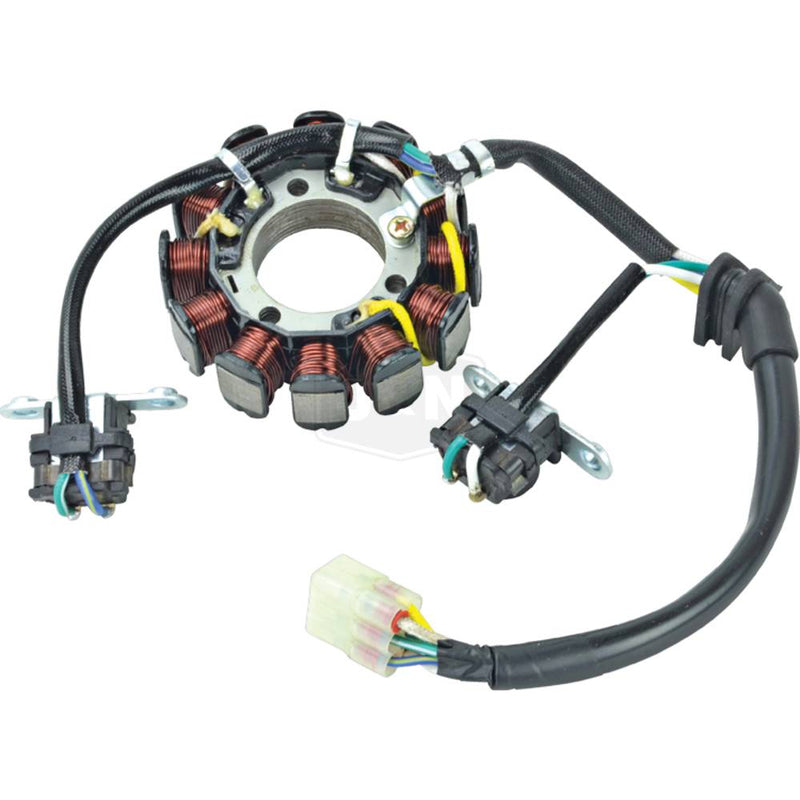

Arrowhead - Stator - Honda CRF250R 2014-17 (6-34058165)

Arrowhead - Stator - Honda CRF250R 2014-17 (6-34058165)

Save 5% Save 5%
$374.50
$374.50 - $374.50
$374.50
$355.78
$355.78 - $355.78
$355.78

Replacement stator for the specified vehicle electrical system. Check the part number, mounting layout and connector arrangement against the original assembly.

Part number: 6-34058165.

Catalogue part number: 340-58165.

Catalogue specifications:

  • Lam Stack ID: 1.260"
  • Lam Stack ID: 32mm
  • Lam Stack OD: 3.020"
  • Lam Stack OD: 76.700mm
  • Lam Stack Thickness: 0.531"
  • Lam Stack Thickness: 13.500mm
  • Includes (2) Magnetic Pick Up Sensors
