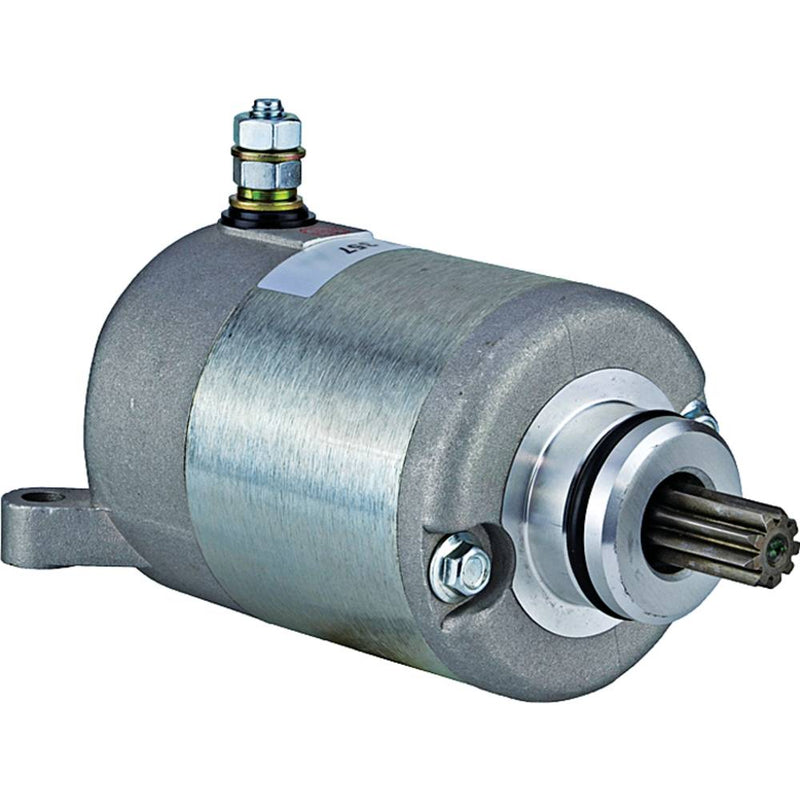

Arrowhead - Starter Motor Polaris 325 ETX/Hawkeye 325/Ace 325/Ranger ETX - Superseded from 6-SMU0569 (6-41022077)

Arrowhead - Starter Motor Polaris 325 ETX/Hawkeye 325/Ace 325/Ranger ETX - Superseded from 6-SMU0569 (6-41022077)

Save 5% Save 5%
$324.35
$324.35 - $324.35
$324.35
$308.13
$308.13 - $308.13
$308.13

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41022077.

Catalogue part number: 410-22077.

Catalogue specifications:

  • Lester: 34050
  • Volt: 12
  • Power: 0.450 kw
  • HP: 0.603
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.465"
  • Gear OD: 11.800mm
  • Length: 3.839"
  • Length: 97.500 mm
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.181"
  • Registry OD: 30mm
  • M6 B+ Stud
  • Mounting Ear Distance 1: 2.366"
  • Mounting Ear Distance 1: 60.100mm
