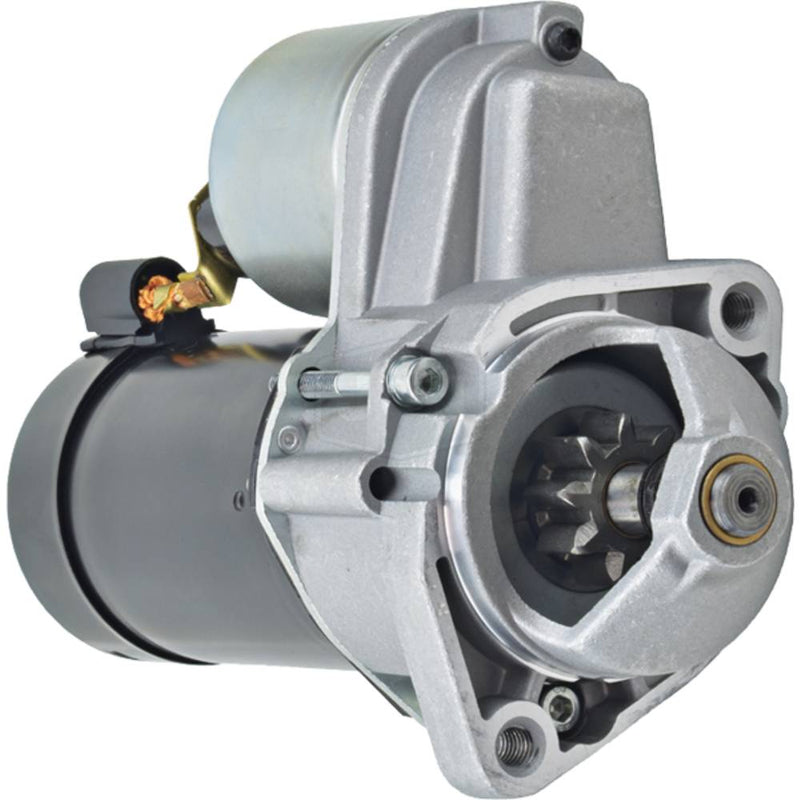

Arrowhead - Starter Motor Moto Guzzi - Superseded from 6-SPR0018 (6-41040034)

Arrowhead - Starter Motor Moto Guzzi - Superseded from 6-SPR0018 (6-41040034)

Save 5% Save 5%
$347.25
$347.25 - $347.25
$347.25
$329.89
$329.89 - $329.89
$329.89

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41040034.

Catalogue part number: 410-40034.

Catalogue specifications:

  • Lester: 18355, 18900, 18901
  • Volt: 12
  • Power: 1.200 kw
  • HP: 1.609
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Gear Reduction (PMGR)
  • Number of Teeth: 9
  • Gear OD: 1.154"
  • Gear OD: 29.300mm
  • Length: 167 mm
  • Length: 6.575"
  • Mount Hole ID 1: M8x1.25
  • Mount Hole 1 Type: Threaded
  • Mount Hole ID 2: M8x1.25
  • Mount Hole 2 Type: Threaded
  • Registry OD: 2.441"
  • Registry OD: 62mm
  • M8-1.25 B+ & Motor Studs @Spade S Terminal @88mm Mounting Hole Center To Center
