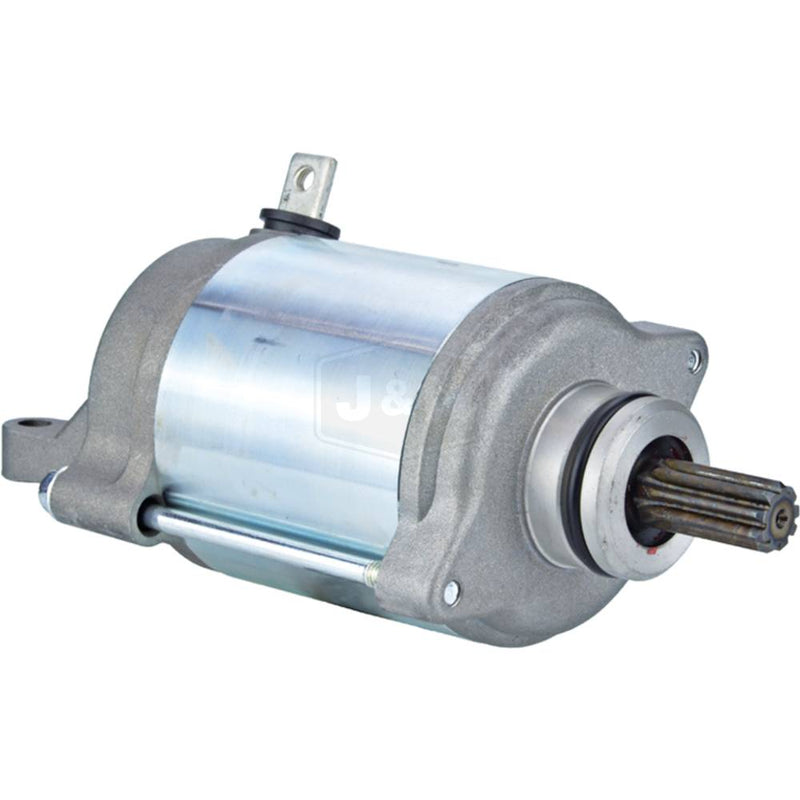

Arrowhead - Starter Motor Suzuki GSX-R1000 01-08 - Superseded from 6-SMU0398 (6-41052223)

Arrowhead - Starter Motor Suzuki GSX-R1000 01-08 - Superseded from 6-SMU0398 (6-41052223)

Save 5% Save 5%
$596.30
$596.30 - $596.30
$596.30
$566.49
$566.49 - $566.49
$566.49

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41052223.

Catalogue part number: 410-52223.

Catalogue specifications:

  • Lester: 18804
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.453"
  • Gear OD: 11.500mm
  • Mount Hole ID 1: 7mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
