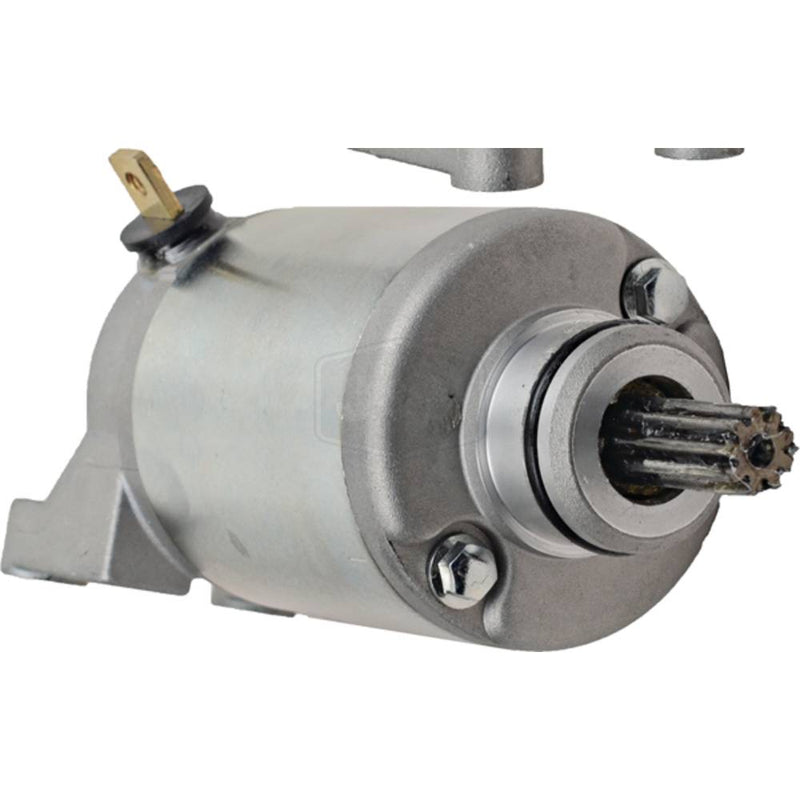

Arrowhead - Starter Motor - Superseded from 6-SND0502 (6-41052257)

Arrowhead - Starter Motor - Superseded from 6-SND0502 (6-41052257)

Save 5% Save 5%
$288.85
$288.85 - $288.85
$288.85
$274.41
$274.41 - $274.41
$274.41

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41052257.

Catalogue part number: 410-52257.

Catalogue specifications:

  • Lester: 18813
  • Volt: 12
  • Power: 0.600 kw
  • HP: 0.805
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.445"
  • Gear OD: 11.300mm
  • Mount Hole ID 1: 6mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • M5-0.8 Battery Tab
