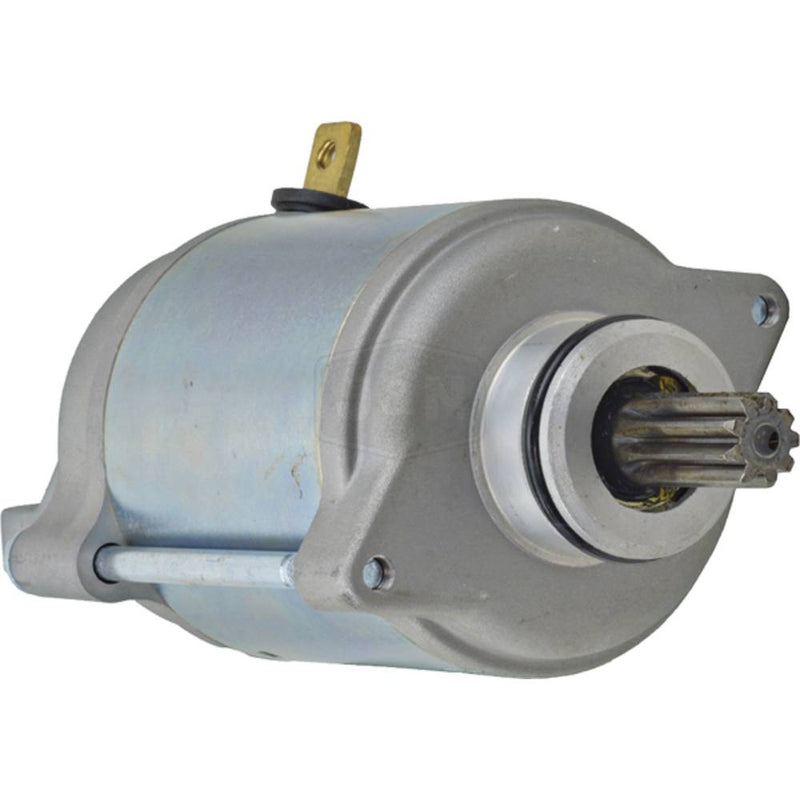

Arrowhead - Starter Motor 690 DUKE - Superseded from 6-SMU0537 (6-41052464)

Arrowhead - Starter Motor 690 DUKE - Superseded from 6-SMU0537 (6-41052464)

Save 5% Save 5%
$493.30
$493.30 - $493.30
$493.30
$468.64
$468.64 - $468.64
$468.64

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41052464.

Catalogue part number: 410-52464.

Catalogue specifications:

  • Lester: 30969
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.453"
  • Gear OD: 11.500mm
  • Length: 119.500 mm
  • Length: 4.705"
  • Mount Hole ID 1: 6.700mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.181"
  • Registry OD: 30mm
  • M5-0.8 B+ Terminal @34.15mm Mounting Hole Center To Center
