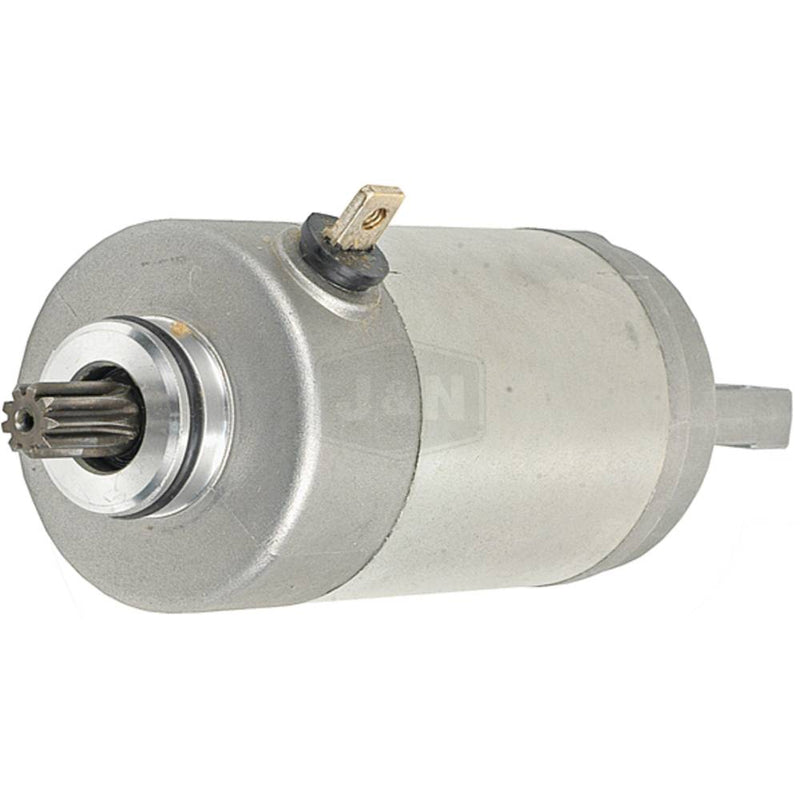

Arrowhead - Starter Motor Yamaha YFM125 Grizzly 04-14 - Superseded from 6-SMU0062 (6-41054015)

Arrowhead - Starter Motor Yamaha YFM125 Grizzly 04-14 - Superseded from 6-SMU0062 (6-41054015)

Save 5% Save 5%
$272.65
$272.65 - $272.65
$272.65
$259.02
$259.02 - $259.02
$259.02

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054015.

Catalogue part number: 410-54015.

Catalogue specifications:

  • Lester: 18755
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.453"
  • Gear OD: 11.500mm
  • Mount Hole ID 1: 6.600mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • M5-0.8 Threaded Tab for Battery Connection
