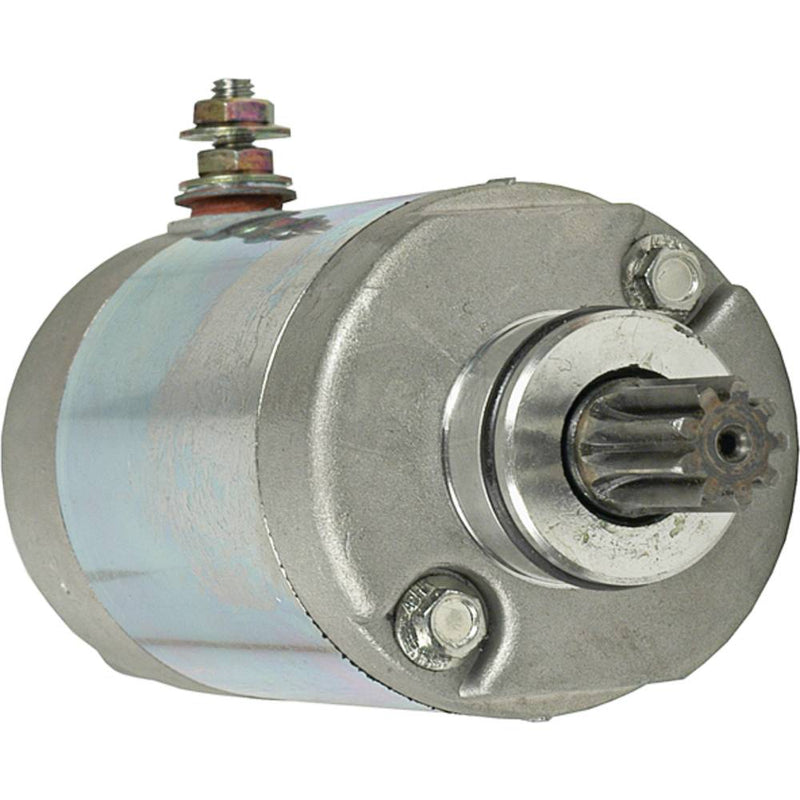

Arrowhead - Starter Motor Yamaha YFB250 92-00 - Superseded from 6-SMU0063 (6-41054016)

Arrowhead - Starter Motor Yamaha YFB250 92-00 - Superseded from 6-SMU0063 (6-41054016)

Save 5% Save 5%
$222.25
$222.25 - $222.25
$222.25
$211.14
$211.14 - $211.14
$211.14

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054016.

Catalogue part number: 410-54016.

Catalogue specifications:

  • Lester: 18754
  • Family: Mitsuba SM14
  • Volt: 12
  • Power: 0.400 kw
  • HP: 0.536
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.559"
  • Gear OD: 14.200mm
  • Length: 176.200 mm
  • Length: 6.937"
  • Mount Hole ID 1: M6x1.00
  • Mount Hole 1 Type: Threaded
  • Mount Hole ID 2: M6x1.00
  • Mount Hole 2 Type: Threaded
  • Registry OD: 1.173"
  • Registry OD: 29.800mm
