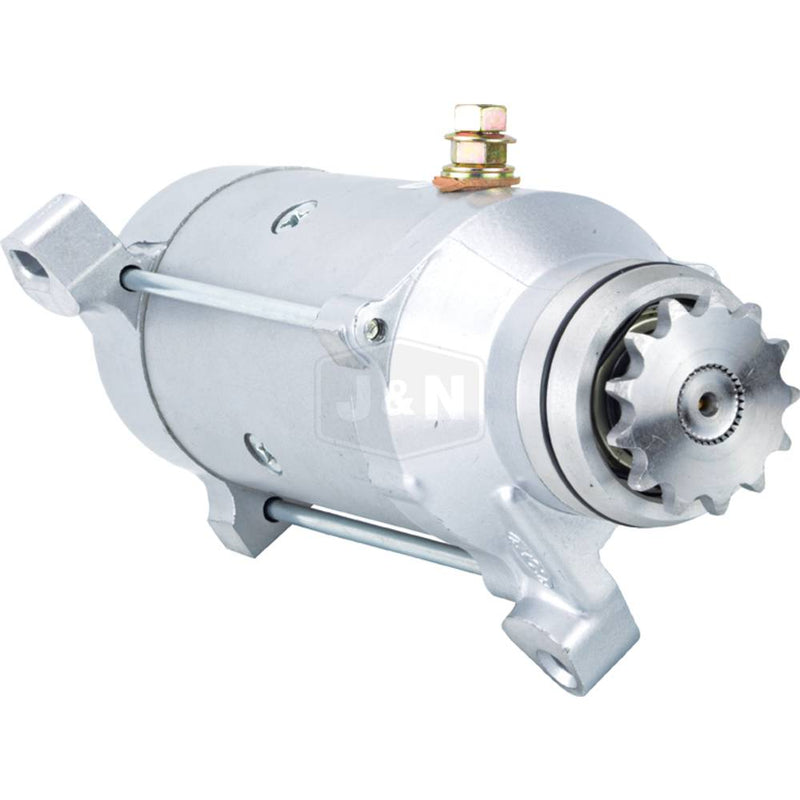

Arrowhead - Starter Motor Honda GL1100 - Superseded from 6-SMU0069 (6-41054023)

Arrowhead - Starter Motor Honda GL1100 - Superseded from 6-SMU0069 (6-41054023)

Save 5% Save 5%
$467.90
$467.90 - $467.90
$467.90
$444.51
$444.51 - $444.51
$444.51

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054023.

Catalogue part number: 410-54023.

Catalogue specifications:

  • Lester: 18600
  • Family: Mitsuba SM2
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 13
  • Gear OD: 1.528"
  • Gear OD: 38.800mm
  • Length: 187.400 mm
  • Length: 7.378"
  • Mount Hole ID 1: 6.600mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.807"
  • Registry OD: 45.900mm
  • Mounting Hole #2 Is Oblong at 6.6mm x 13.1mm
