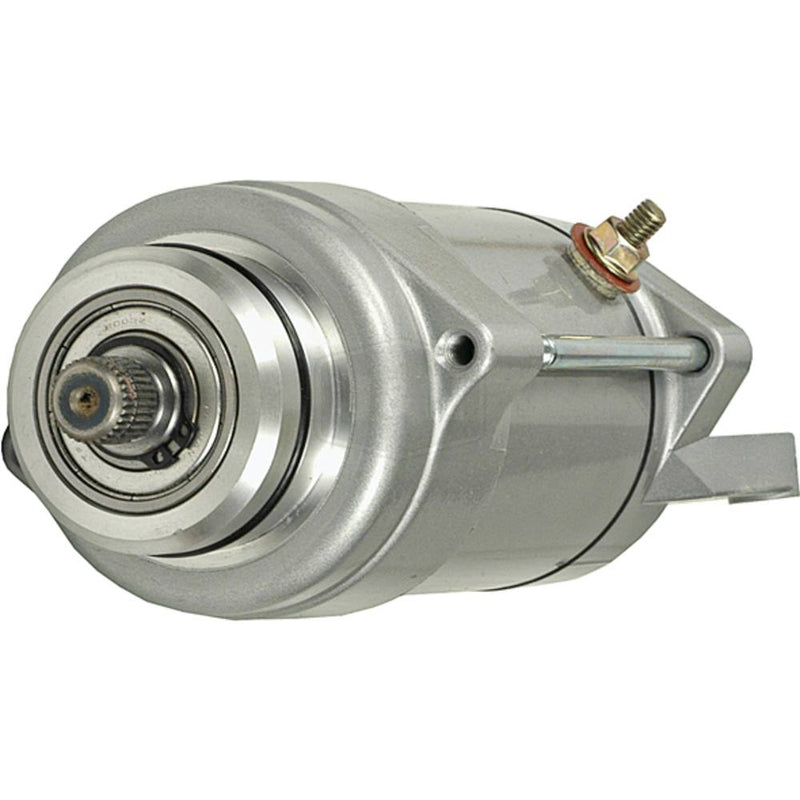

Arrowhead - Starter Motor Yamaha XV750/920 - Superseded from 6-SMU0072 (6-41054024)

Arrowhead - Starter Motor Yamaha XV750/920 - Superseded from 6-SMU0072 (6-41054024)

Save 5% Save 5%
$486.45
$486.45 - $486.45
$486.45
$462.13
$462.13 - $462.13
$462.13

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054024.

Catalogue part number: 410-54024.

Catalogue specifications:

  • Lester: 18727
  • Family: Mitsuba SM13
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Planetary Gear Reduction (PLGR)
  • Number of Teeth: 31
  • Gear OD: 0.535"
  • Gear OD: 13.600mm
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • 47.9mm Index Ring at Drive End@ O-Ring Sealed
