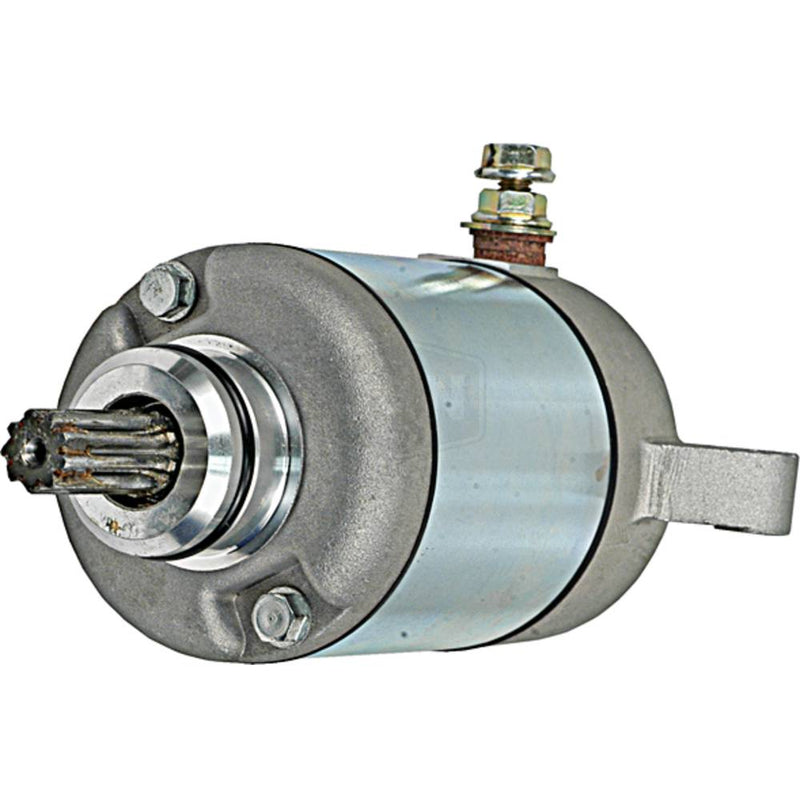

Arrowhead - Starter Motor Yamaha YFZ450 04-13 - Superseded from 6-SMU0264 (6-41054071)

Arrowhead - Starter Motor Yamaha YFZ450 04-13 - Superseded from 6-SMU0264 (6-41054071)

Save 5% Save 5%
$238.50
$238.50 - $238.50
$238.50
$226.58
$226.58 - $226.58
$226.58

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054071.

Catalogue part number: 410-54071.

Catalogue specifications:

  • Lester: 18761
  • Family: Mitsuba SM14
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.465"
  • Gear OD: 11.800mm
  • Mount Hole ID 1: 6.400mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Battery Stud M6-1.0 Threaded
