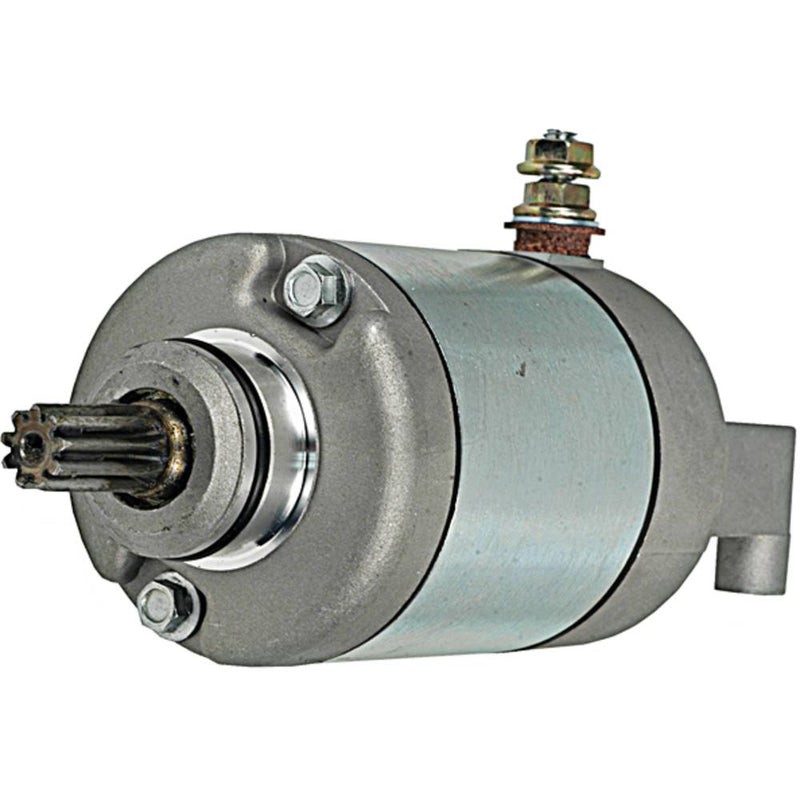

Arrowhead - Starter Motor Yamaha R6 99-05 - Superseded from 6-SMU0210 (6-41054092)

Arrowhead - Starter Motor Yamaha R6 99-05 - Superseded from 6-SMU0210 (6-41054092)

Save 5% Save 5%
$370.65
$370.65 - $370.65
$370.65
$352.12
$352.12 - $352.12
$352.12

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054092.

Catalogue part number: 410-54092.

Catalogue specifications:

  • Lester: 18763
  • Family: Mitsuba SM14
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.457"
  • Gear OD: 11.600mm
  • Mount Hole ID 1: 6.400mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • M6-1.0 Threaded Battery Terminal@ 27.7mm Thick Mounting Ears
