Arrowhead - Starter Motor Honda GL1200 - Superseded from 6-SMU0112 (6-41054109)

Arrowhead - Starter Motor Honda GL1200 - Superseded from 6-SMU0112 (6-41054109)

Save 5% Save 5%
$451.25
$451.25 - $451.25
$451.25
$428.69
$428.69 - $428.69
$428.69

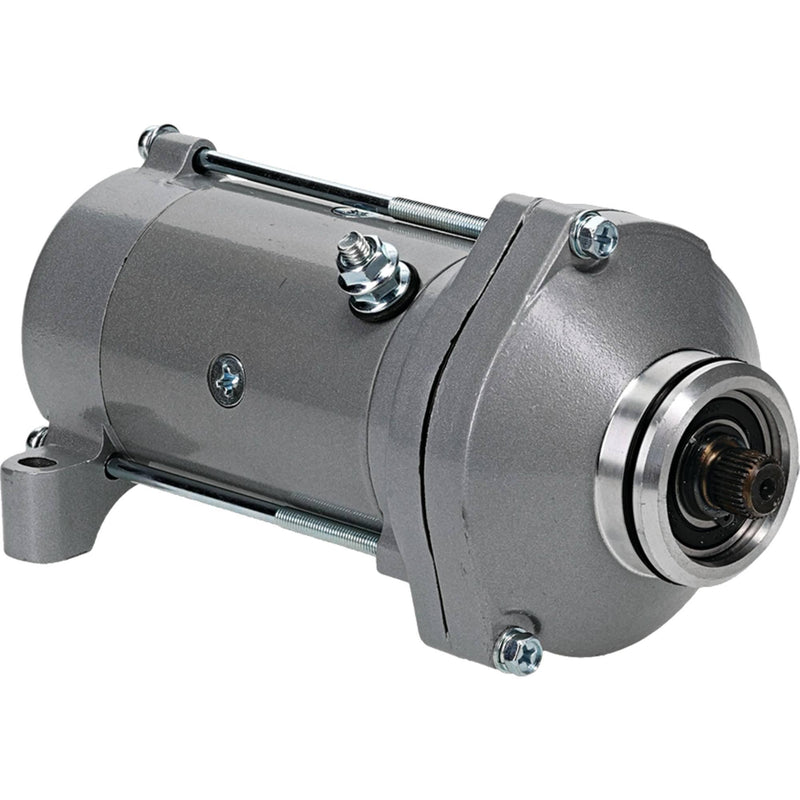

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054109.

Catalogue part number: 410-54109.

Catalogue specifications:

  • Lester: 18628
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Gear OD: 0.531"
  • Gear OD: 13.500mm
  • Mount Hole ID 1: 6.800mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • 3 Bolt DE Frame@ 2nd Mounting Hole is 6.1mm x 8.1mm Slotted
