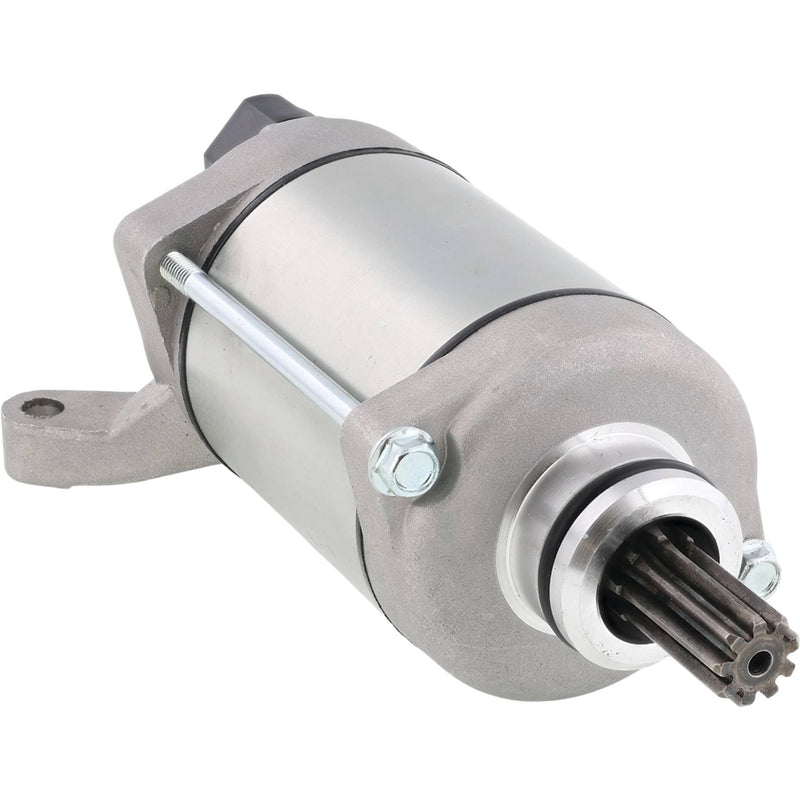

Arrowhead - Starter Motor Yamaha YFM450/550 Grizzly - Superseded from 6-SMU0516 (6-41054148)

Arrowhead - Starter Motor Yamaha YFM450/550 Grizzly - Superseded from 6-SMU0516 (6-41054148)

Save 5% Save 5%
$549.95
$549.95 - $549.95
$549.95
$522.45
$522.45 - $522.45
$522.45

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054148.

Catalogue part number: 410-54148.

Catalogue specifications:

  • Lester: 19499
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.551"
  • Gear OD: 14mm
  • Length: 153.500 mm
  • Length: 6.043"
  • Mount Hole ID 1: 6.300mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.130"
  • Registry OD: 28.700mm
  • Mounting Ear Distance 1: 3.378"
  • Mounting Ear Distance 1: 85.800mm
