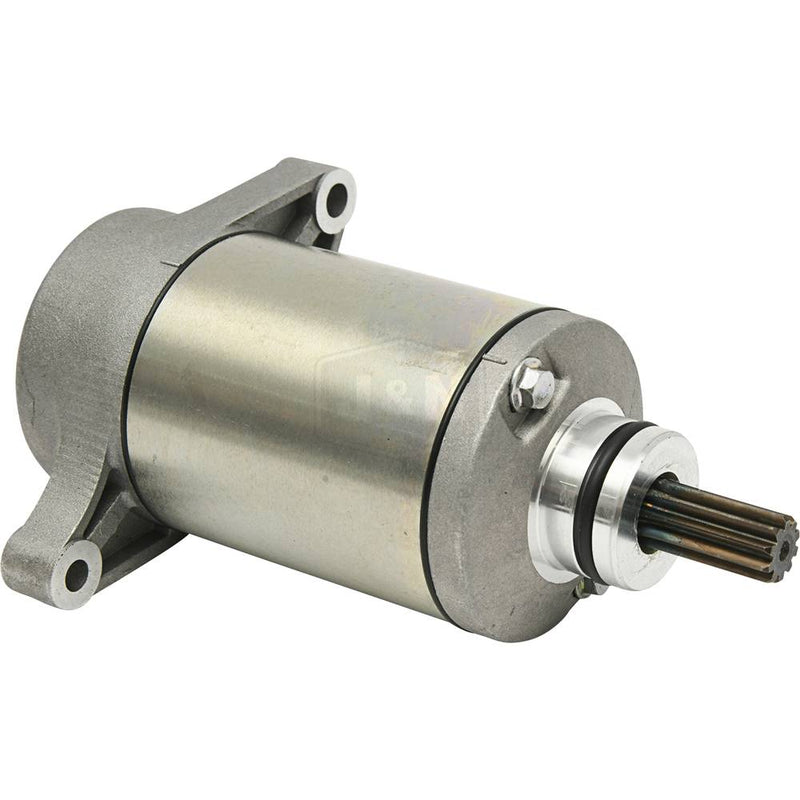

Arrowhead - Starter Motor ARCTIC CAT - Superseded from 6-SMU0545 (6-41054197)

Arrowhead - Starter Motor ARCTIC CAT - Superseded from 6-SMU0545 (6-41054197)

Save 5% Save 5%
$361.65
$361.65 - $361.65
$361.65
$343.57
$343.57 - $343.57
$343.57

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054197.

Catalogue part number: 410-54197.

Catalogue specifications:

  • Lester: 16077
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 10
  • Gear OD: 0.504"
  • Gear OD: 12.800mm
  • Length: 115.500 mm
  • Length: 4.547"
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.181"
  • Registry OD: 30mm
  • M6-1.0 B+ Stud
  • Mounting Ear Distance 1: 3.858"
  • Mounting Ear Distance 1: 98mm
