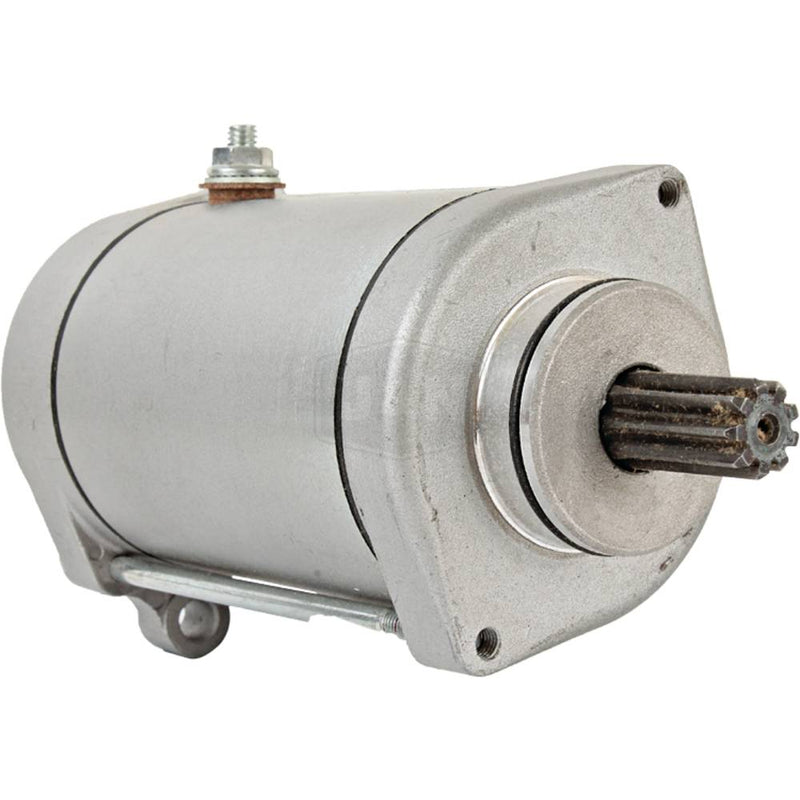

Arrowhead - Starter Motor Suzuki C90 05-09 - Superseded from 6-SMU0187 (6-41054201)

Arrowhead - Starter Motor Suzuki C90 05-09 - Superseded from 6-SMU0187 (6-41054201)

Save 5% Save 5%
$383.20
$383.20 - $383.20
$383.20
$364.04
$364.04 - $364.04
$364.04

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054201.

Catalogue part number: 410-54201.

Catalogue specifications:

  • Lester: 18786
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.535"
  • Gear OD: 13.600mm
  • Length: 135 mm
  • Length: 5.315"
  • Mount Hole ID 1: 6.600mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.567"
  • Registry OD: 39.800mm
  • M6-1.0 B+ Stud
  • Mounting Ear Distance 1: 3.173"
  • Mounting Ear Distance 1: 80.600mm
