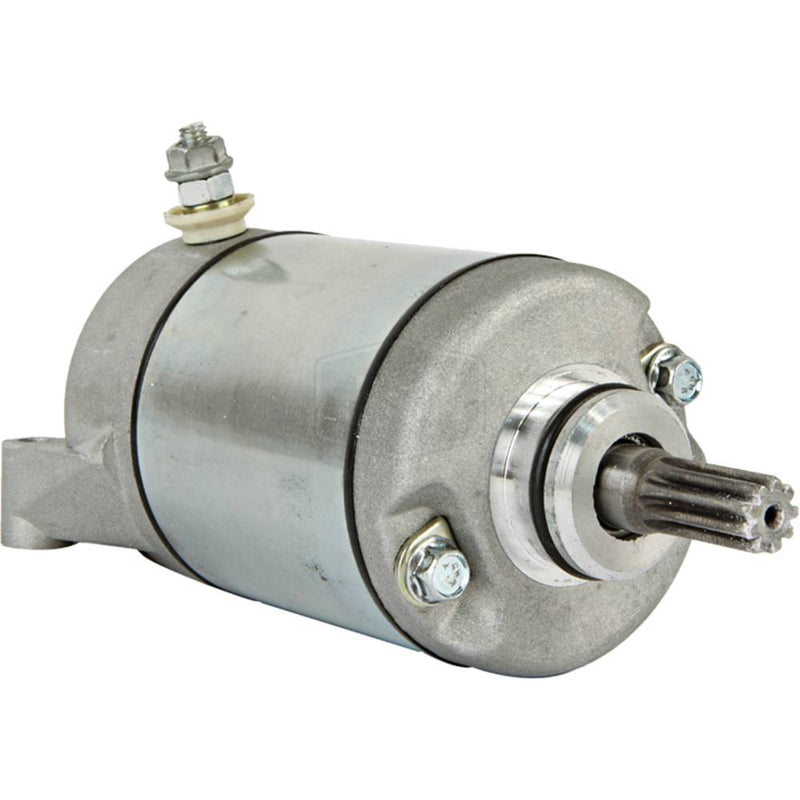

Arrowhead - Starter Motor CRF230 - Superseded from 6-SMU0371 (6-41054214)

Arrowhead - Starter Motor CRF230 - Superseded from 6-SMU0371 (6-41054214)

Save 5% Save 5%
$270.05
$270.05 - $270.05
$270.05
$256.55
$256.55 - $256.55
$256.55

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054214.

Catalogue part number: 410-54214.

Catalogue specifications:

  • Lester: 18850
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.453"
  • Gear OD: 11.500mm
  • Length: 122.300 mm
  • Length: 4.815"
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.169"
  • Registry OD: 29.700mm
  • M6 B+ Stud
  • Mounting Ear Distance 1: 2.024"
  • Mounting Ear Distance 1: 51.400mm
