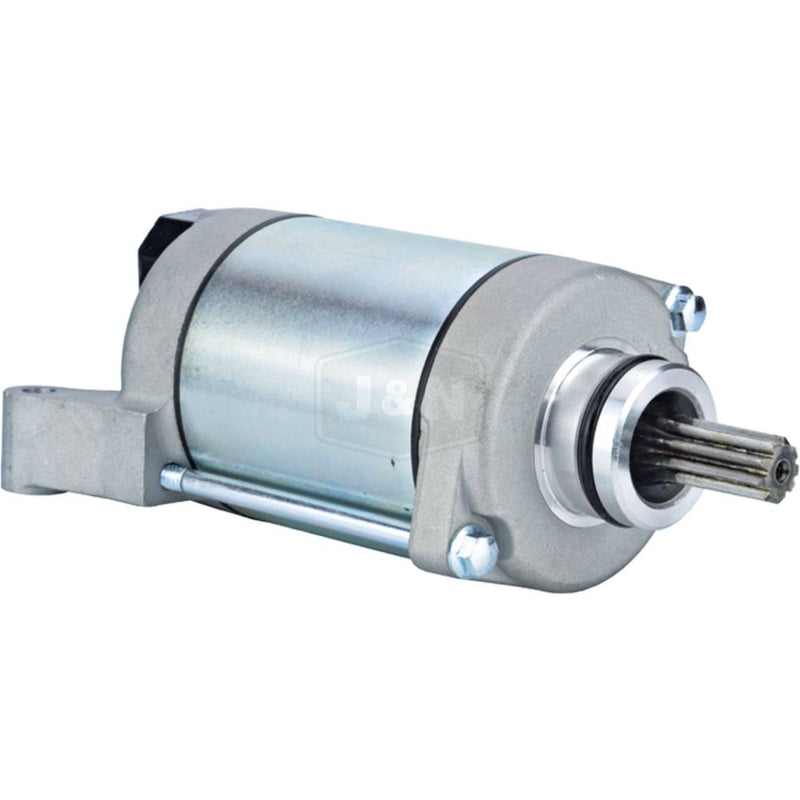

Arrowhead - Starter Motor Honda CRF230 08-15 - Superseded from 6-SMU0480 (6-41054223)

Arrowhead - Starter Motor Honda CRF230 08-15 - Superseded from 6-SMU0480 (6-41054223)

Save 5% Save 5%
$409.70
$409.70 - $409.70
$409.70
$389.22
$389.22 - $389.22
$389.22

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054223.

Catalogue part number: 410-54223.

Catalogue specifications:

  • Lester: 30822
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.461"
  • Gear OD: 11.700mm
  • Length: 124 mm
  • Length: 4.882"
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.177"
  • Registry OD: 29.900mm
  • M6-1.0 B+ Stud
  • Mounting Ear Distance 1: 2.039"
  • Mounting Ear Distance 1: 51.800mm
