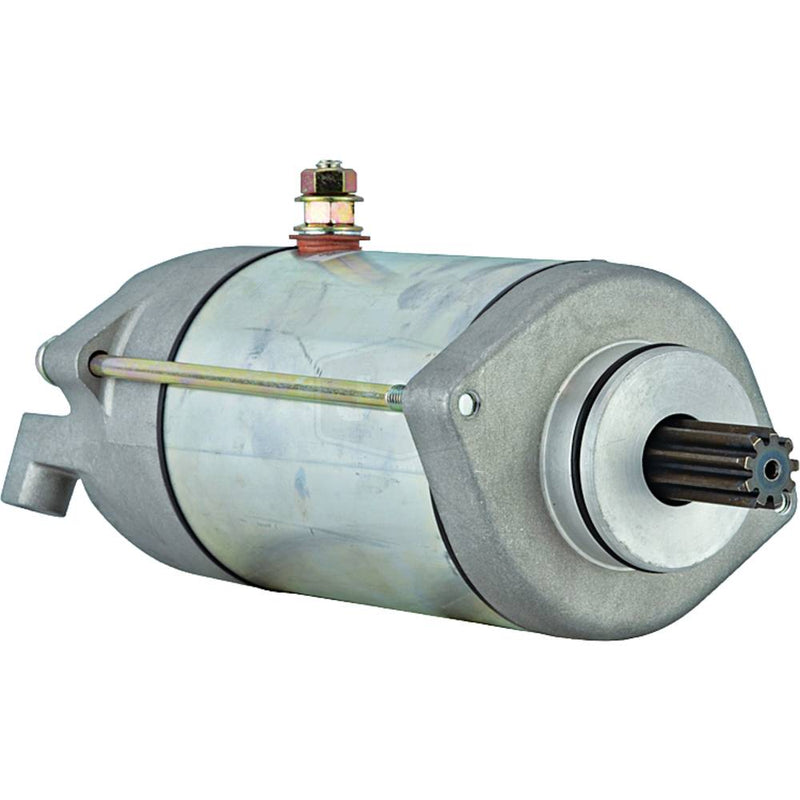

Arrowhead - Starter Motor KTM 1190 RC8 - Superseded from 6-SMU0536 (6-41054234)

Arrowhead - Starter Motor KTM 1190 RC8 - Superseded from 6-SMU0536 (6-41054234)

Save 5% Save 5%
$411.20
$411.20 - $411.20
$411.20
$390.64
$390.64 - $390.64
$390.64

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054234.

Catalogue part number: 410-54234.

Catalogue specifications:

  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.559"
  • Gear OD: 14.200mm
  • Length: 201 mm
  • Length: 7.913"
  • Mount Hole ID 1: 6.300mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.571"
  • Registry OD: 39.900mm
