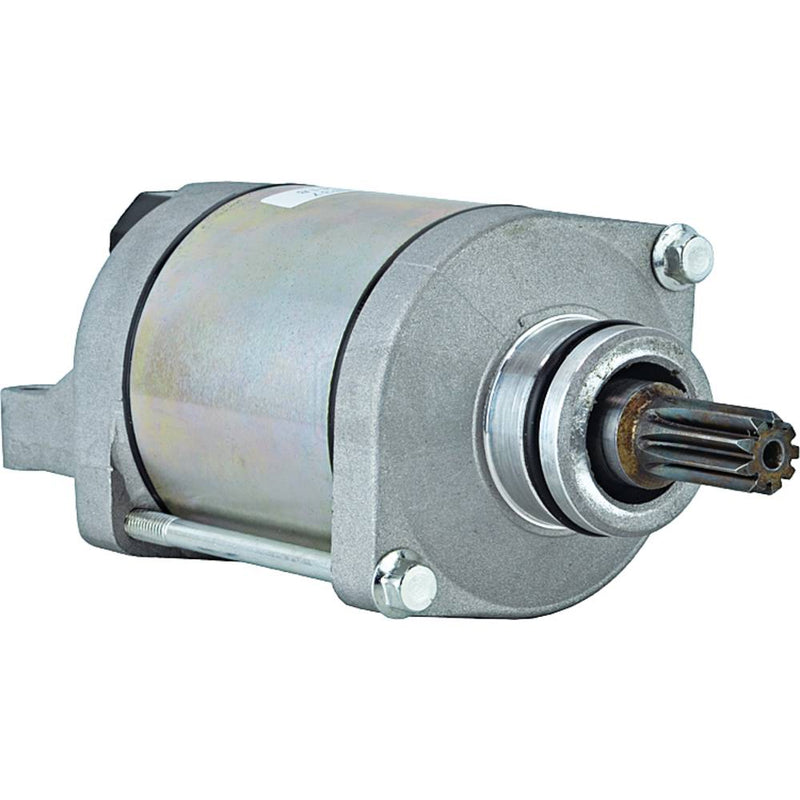

Arrowhead - Starter Motor - Suzuki GSXR600/750 10-18 (6-41054240)

Arrowhead - Starter Motor - Suzuki GSXR600/750 10-18 (6-41054240)

Save 5% Save 5%
$303.25
$303.25 - $303.25
$303.25
$288.09
$288.09 - $288.09
$288.09

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054240.

Catalogue part number: 410-54240.

Catalogue specifications:

  • Lester: 31049
  • Volt: 12
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.453"
  • Gear OD: 11.500mm
  • Length: 162 mm
  • Length: 6.378"
  • Mount Hole ID 1: 6.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.130"
  • Registry OD: 28.700mm
  • M6-1.0 B+
  • Mounting Ear Distance 1: 1.331"
  • Mounting Ear Distance 1: 33.800mm
