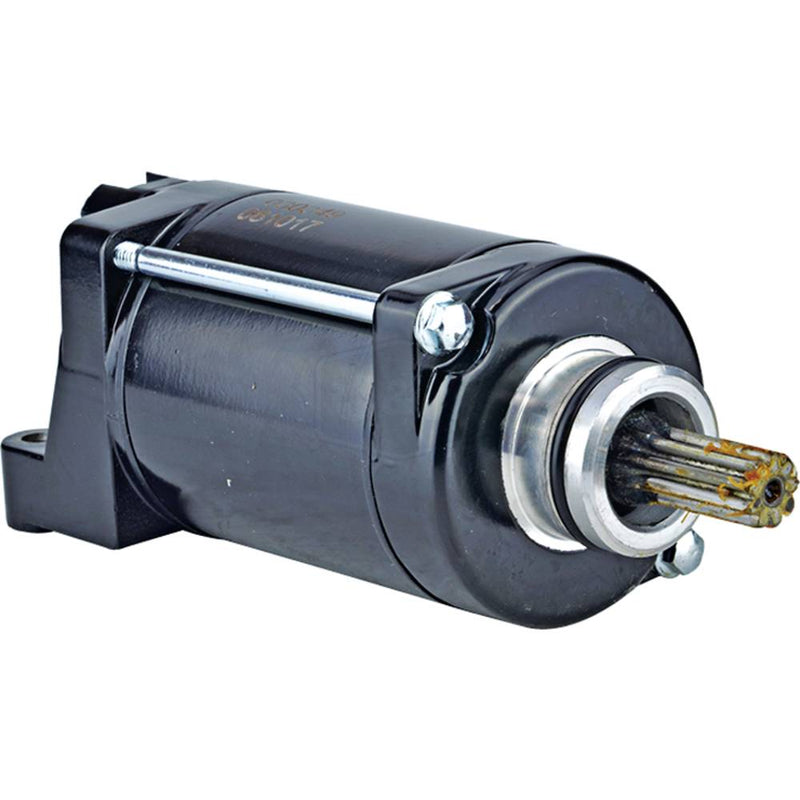

Arrowhead - Starter Motor - Honda CBR500R/RA, CMX500 2013-18 - Superseded from 6-SMU0559 (6-41054258)

Arrowhead - Starter Motor - Honda CBR500R/RA, CMX500 2013-18 - Superseded from 6-SMU0559 (6-41054258)

Save 5% Save 5%
$292.30
$292.30 - $292.30
$292.30
$277.69
$277.69 - $277.69
$277.69

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054258.

Catalogue part number: 410-54258.

Catalogue specifications:

  • Lester: 30823
  • Volt: 12
  • Rotation Direction: Counter Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.472"
  • Gear OD: 12mm
  • Length: 119.500 mm
  • Length: 4.705"
  • Mount Hole ID 1: 7.100mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Registry OD: 1.181"
  • Registry OD: 30mm
  • M6 B+ Stud
  • Mounting Ear Distance 2: 1.811"
  • Mounting Ear Distance 2: 46mm
