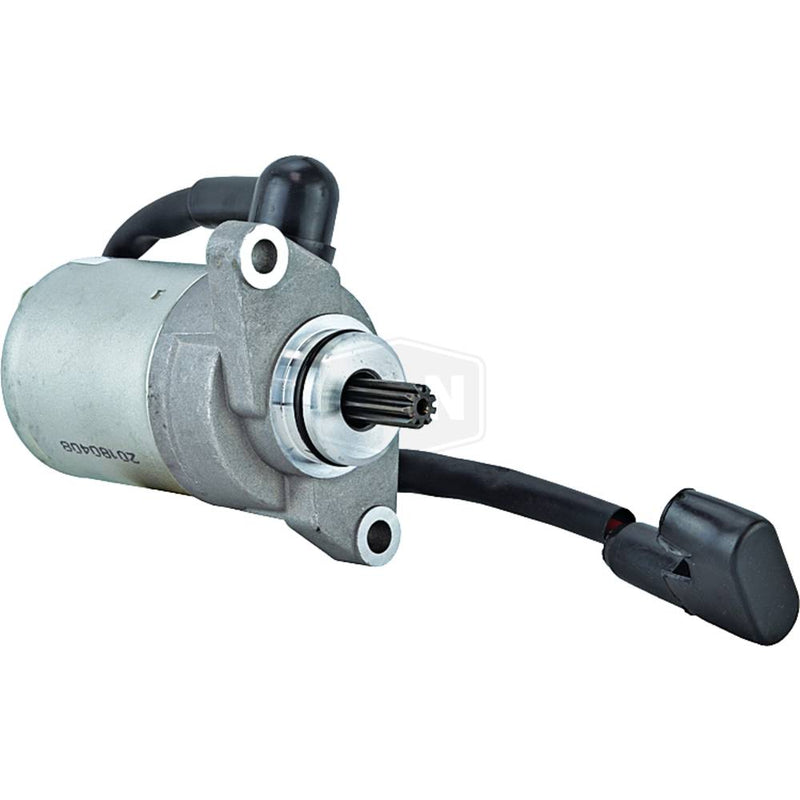

Arrowhead - Starter Motor - Can-Am DS70/DS90 (6-41054261)

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41054261.

Catalogue part number: 410-54261.

Catalogue specifications:

• Volt: 12
• Rotation Direction: Counter Clockwise
• Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
• Number of Teeth: 9
• Gear OD: 0.339"
• Gear OD: 8.600mm
• Length: 3.425"
• Length: 87 mm
• Mount Hole ID 1: 6.700mm
• Mount Hole 1 Type: Unthreaded
• Mount Hole 2 Type: Unthreaded
• Registry OD: 1.024"
• Registry OD: 26mm
• 17mm Shaft Length @240mm B+ Cable w/6.3mm ID Eyelet
• Mounting Ear Distance 1: 2.547"
• Mounting Ear Distance 1: 64.700mm
