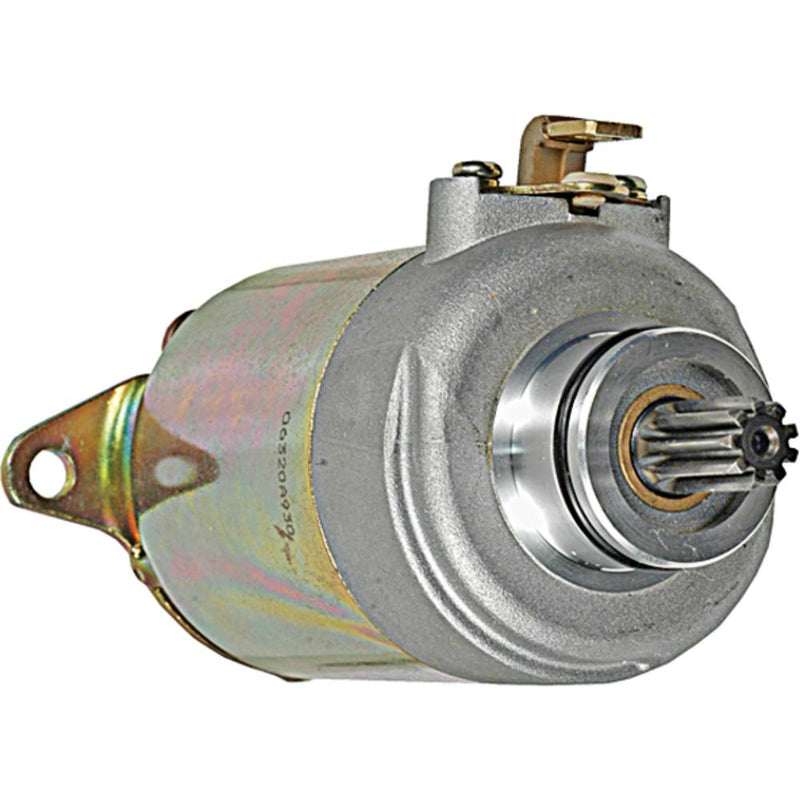

Arrowhead - New AEP Starter - Superseded from 6-SCH0003 (6-41058004)

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41058004.

Catalogue part number: 410-58004.

Catalogue specifications:

• Lester: 19573
• Volt: 12
• Rotation Direction: Clockwise
• Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
• Number of Teeth: 9
• Gear OD: 0.449"
• Gear OD: 11.400mm
• Mount Hole ID 1: 6mm
• Mount Hole 1 Type: Unthreaded
• Mount Hole 2 Type: Unthreaded
• 5mm Unthreaded Tab for Battery Connection@ Mounting Holes in CE Frame
