Arrowhead - Starter Motor CF-Moto 800 12-14 - Superseded from 6-SCH0079 (6-41058065)

Arrowhead - Starter Motor CF-Moto 800 12-14 - Superseded from 6-SCH0079 (6-41058065)

Save 5% Save 5%
$267.90
$267.90 - $267.90
$267.90
$254.51
$254.51 - $254.51
$254.51

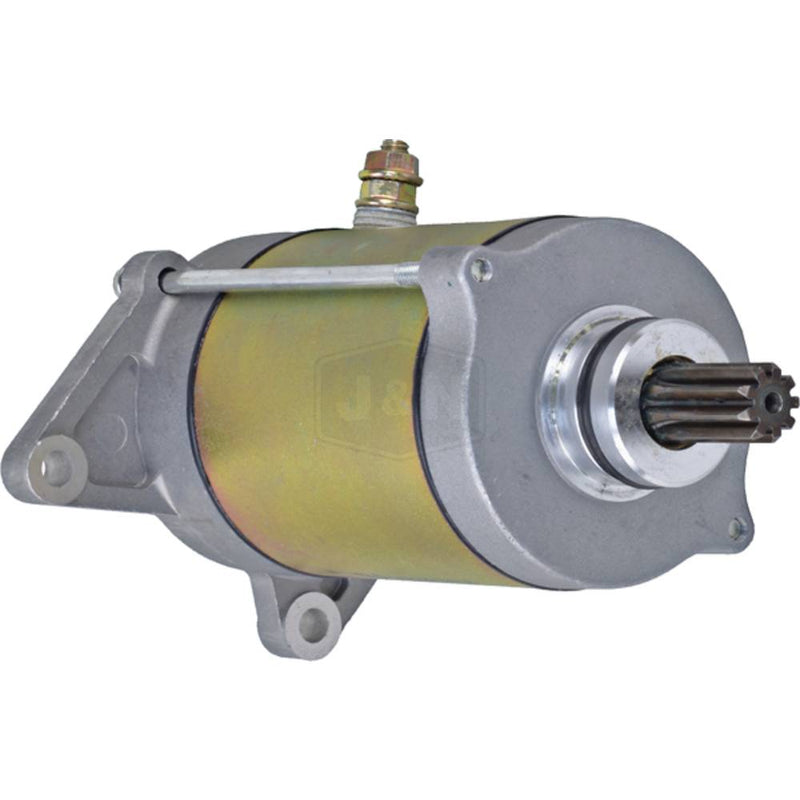

Replacement starter motor for a compatible engine starting system. Match the part number and check the mounting, drive arrangement and electrical connections against the original motor.

Part number: 6-41058065.

Catalogue part number: 410-58065.

Catalogue specifications:

  • Lester: 19480, 19495
  • Volt: 12
  • Power: 0.750 kw
  • HP: 1.006
  • Rotation Direction: Clockwise
  • Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
  • Number of Teeth: 9
  • Gear OD: 0.559"
  • Gear OD: 14.200mm
  • Mount Hole ID 1: 6.900mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
