AIM Mirror / Reverse Camera

Original price $252.95 - Original price $424.95
Original price
$252.95
$252.95 - $424.95
Current price $252.95

AIM Mirror / Reverse Camera

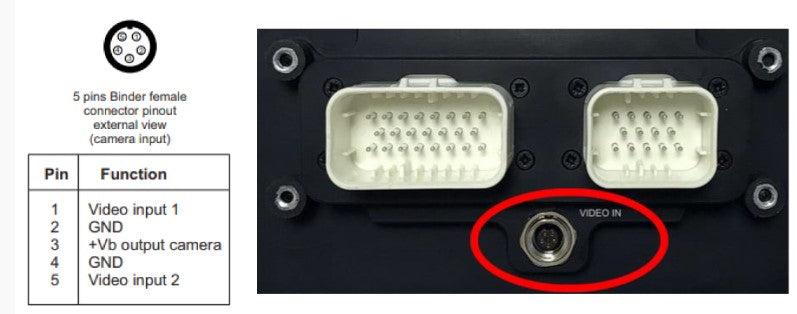

The Video In connector allows the connection of two different analog cameras, that may be activated as here down described.

This camera offers a couple of interesting options:
• the possibility to reverse the image
• the possibility to enable or disable the parking overlay view.

Compatible with: MX2E, MXS 1.2, MXP, MXG 1.2, MXS 1.2 Strada, MXP Strada, MXG 1.2 Strada

The Video In connector allows the connection of two different analog cameras, that may be activated as here down described.

This camera offers a couple of interesting options:
• the possibility to reverse the image
• the possibility to enable or disable the parking overlay view.

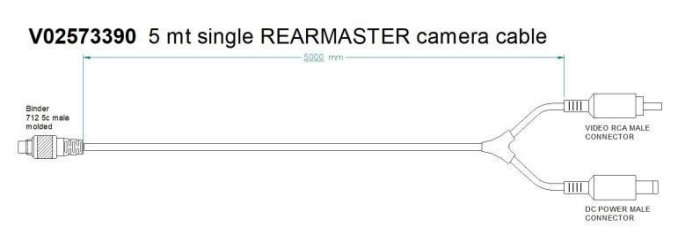

Single RearMaster camera (cable length: 5m) ended with:
o Male metallic 5pins Binder connector for connection to AiM loggers;
o DC Power Connector (yellow) to be connected to the camera one;
o Video RCA Connector (red) to be connected to the camera one.

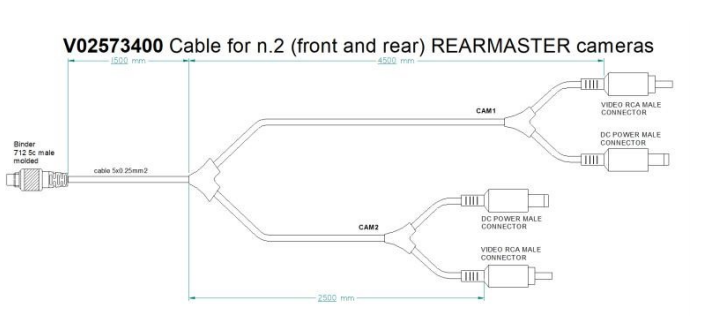

• Double RearMaster camera (cable length: 6m) ended with:
o Male metallic 5pins Binder connector for connection to AiM loggers;
o X2 DC Power Connector (yellow)* to be connected to the camera one;
o X2 Video RCA Connector (red)* to be connected to the camera one.
* The two DC Power and Video RCA cables couples are respectively 4m and 6m long, in order to allow both front camera and rear camera connection.
