AIM MXL2 Dash Logger (Free Delivery)
MXL2 is the dashlogger providing all the info needed by professional racers as well as by newbies. The product has been designed with the aim to make configuration and usage smooth and easy either for amateurs and for people with sophisticated technical background.
A wide range of data sources
MXL2 acquires and displays data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules.
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

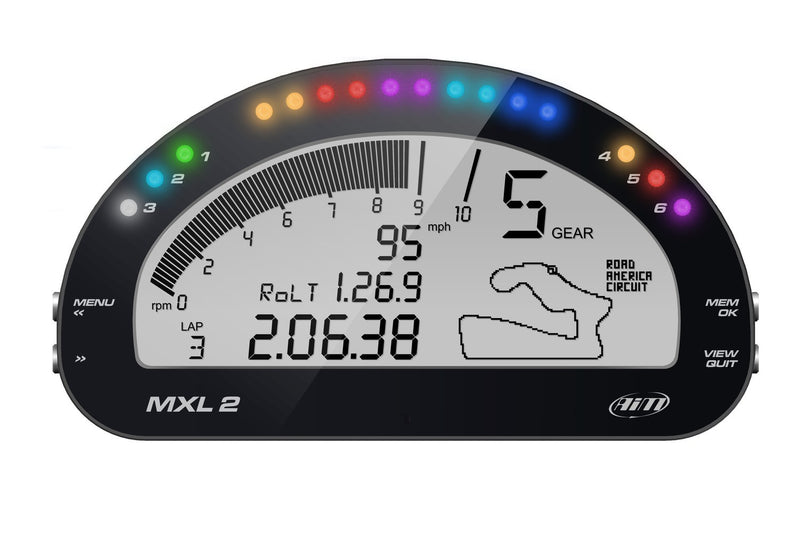

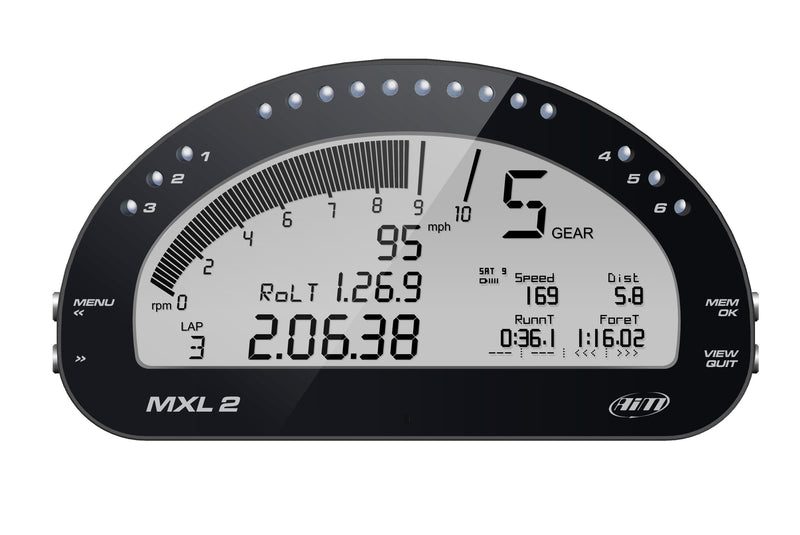

You can define up to eight different custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Sharp liquid crystal

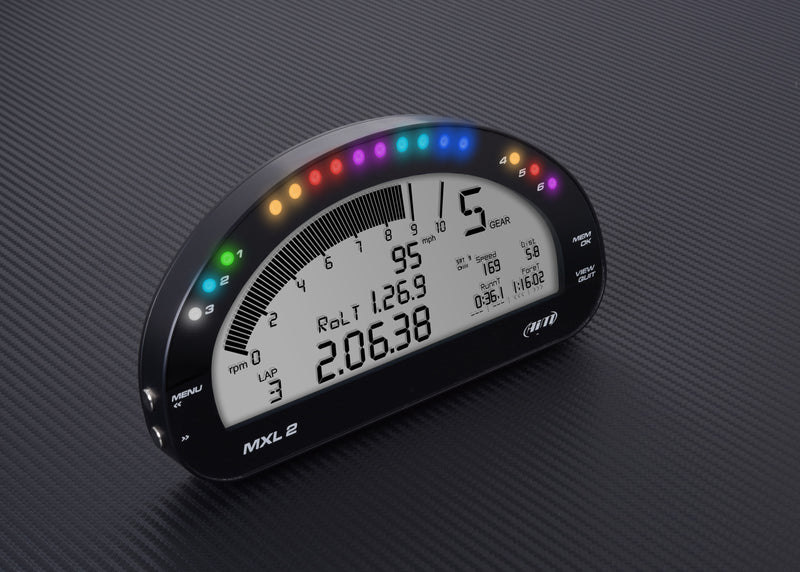

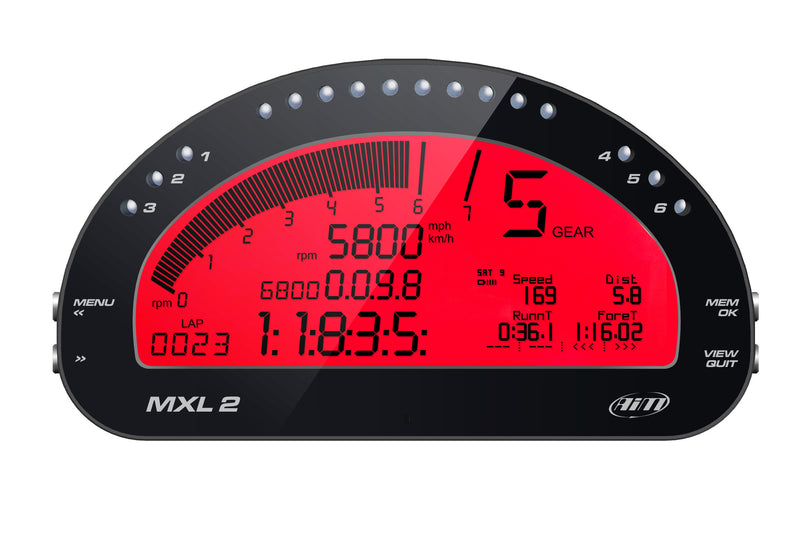

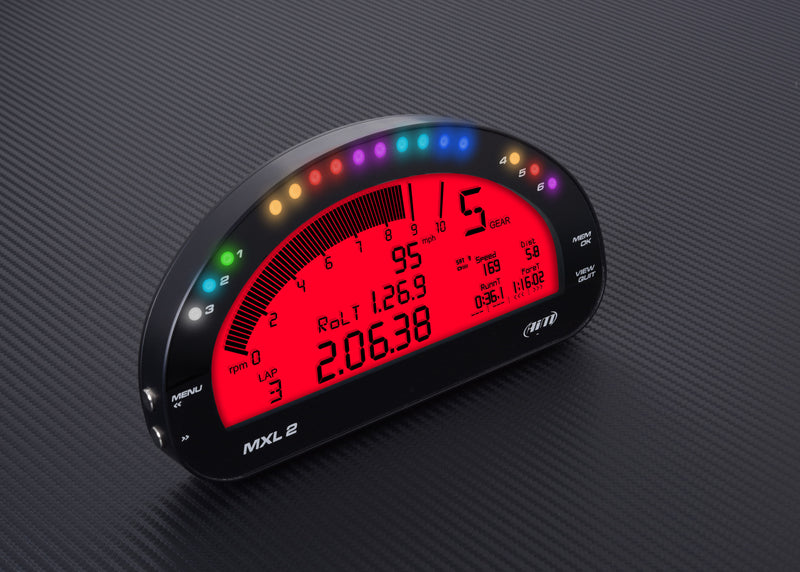

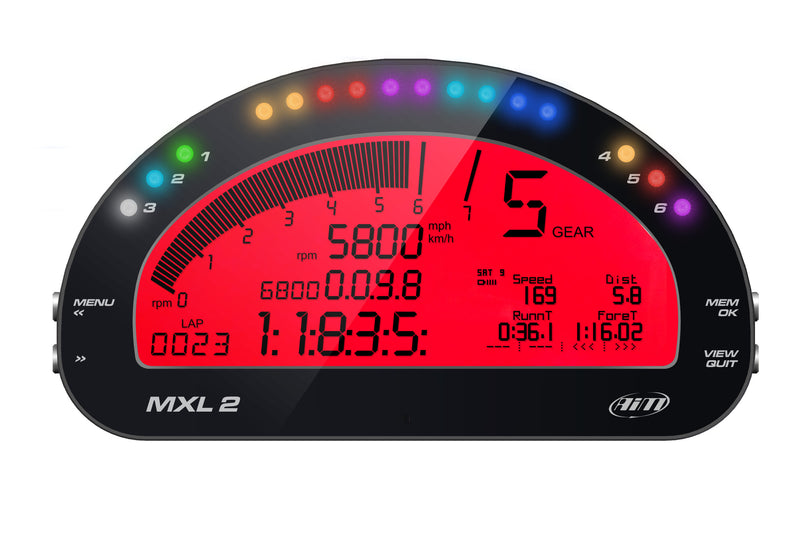

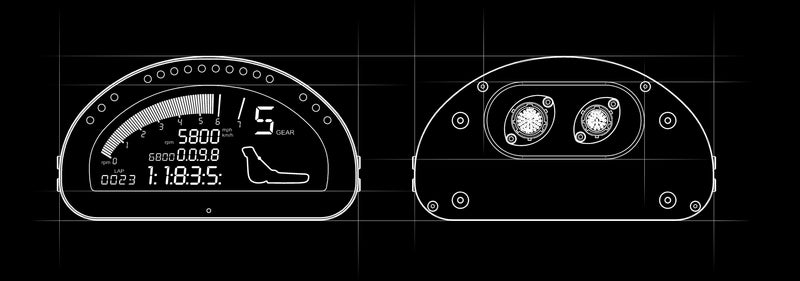

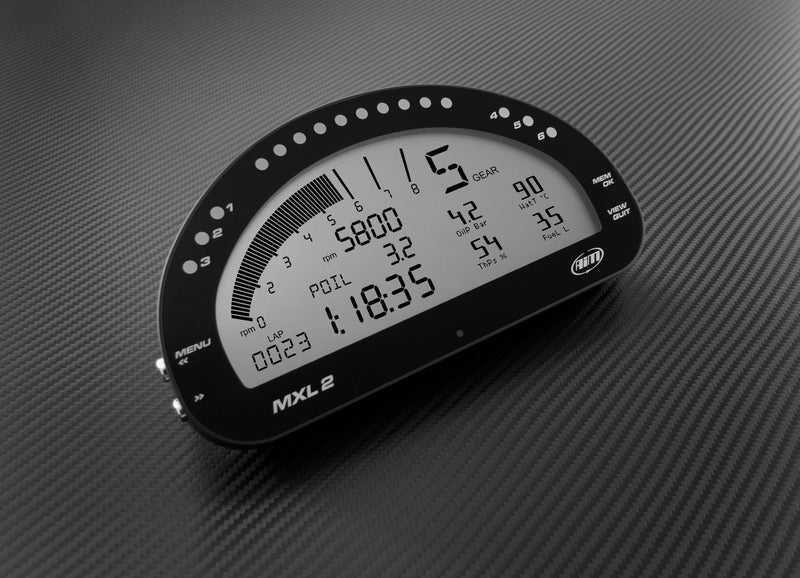

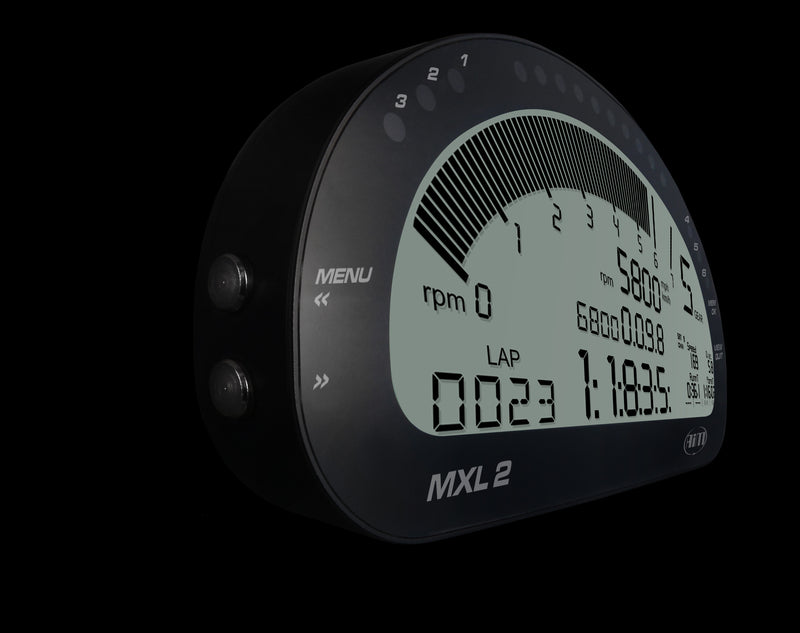

The MXL2 display features a high contrast traditional LCD with a black to white ratio nearly double its predecessor, fused with a graphical LCD offering great flexibility in information display and alerts. The MXL2 now offers a dual colored backlight of high contrast white and red which can also be change conditionally. An ambient light sensor keeps the backlight at optimum brightness levels.

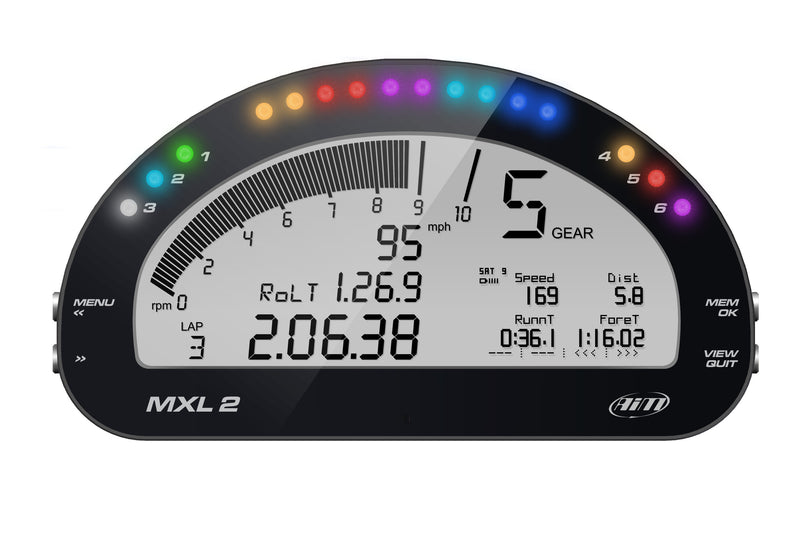

Six different alarm LEDs: you choose the conditions, the colours and the flashing frequency. You can configure them in order to turn the on/off depending on analog or digital inputs, ECU values, expansion values, GPS information or math channels. You can also associate an alarm LED a message and a digital output with each event.
Two digital outputs
MXL2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Integrated shift light array
An integrated shift light is a hallmark of the MXL, but an even better 10 LED shift light array is found in the MXL2. Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like, and for each unique gear when required.
Expand the system, according to your needs
Using the built-in CAN bus, you can add expansion modules to the MXL2 to increment the performance and the data acquired.
- GPS08 Module
- Channel Expansion
- TC Hub
- LCU-One CAN
- SmartyCam HD cameras
- Memory Module
Race Studio 3
Race Studio 3 is the heart of your MXL2, managing all your activities related to:
Configuration - With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, display pages, digital outputs, alarms, shift lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD Cameras.
Analysis - With Race Studio 3 you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your truck/van up to 50 meters away.
|Display||LCD display + graphical portion|
|Backlight||White or red|
|Ambient light sensor||Yes|
|Alarm LEDs||6 RGB freely configurable|
|Shift Lights||10 integrated freely configurable RGB LEDs|
|ECU connections||CAN, RS232 or K-Line|
|ECU compatibility||+1,000 industry leading ECUs|
|Expansion CAN connection||GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD|
|Analog inputs||8 fully configurable, max 1 kHz each|
|Digital inputs||4 Speed inputs, lap signal, coil RPM input|
|Digital outputs||2 (1 A max each)|
|Accelerometer||Internal Three-axial +/- 5G + Three-axial Gyroscope|
|Internal memory||4 GB|

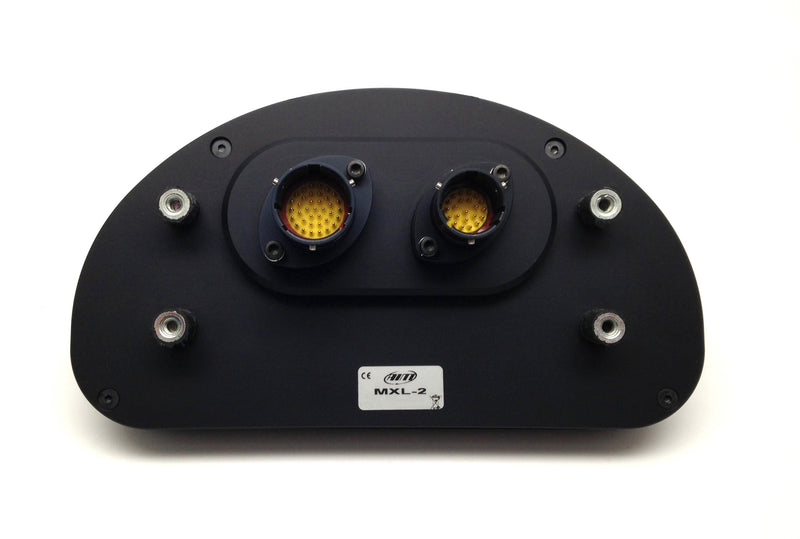

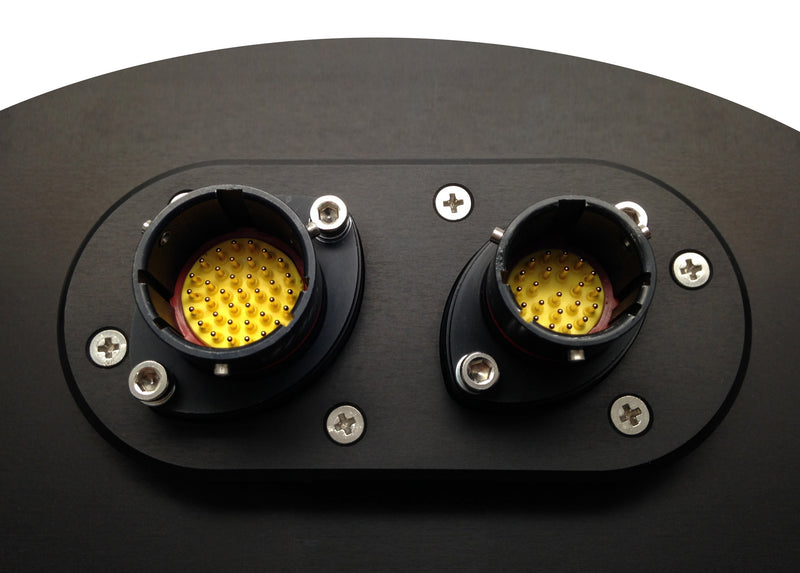

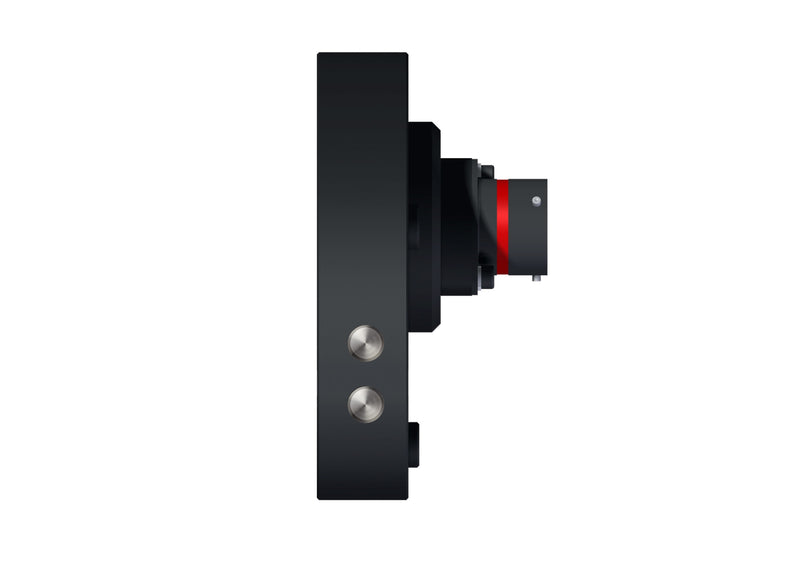

|Connectors||2 Motorsport connectors|
|Power consumption||400 mA|
|Dimensions||187.8 x 103 x 21 mm|
