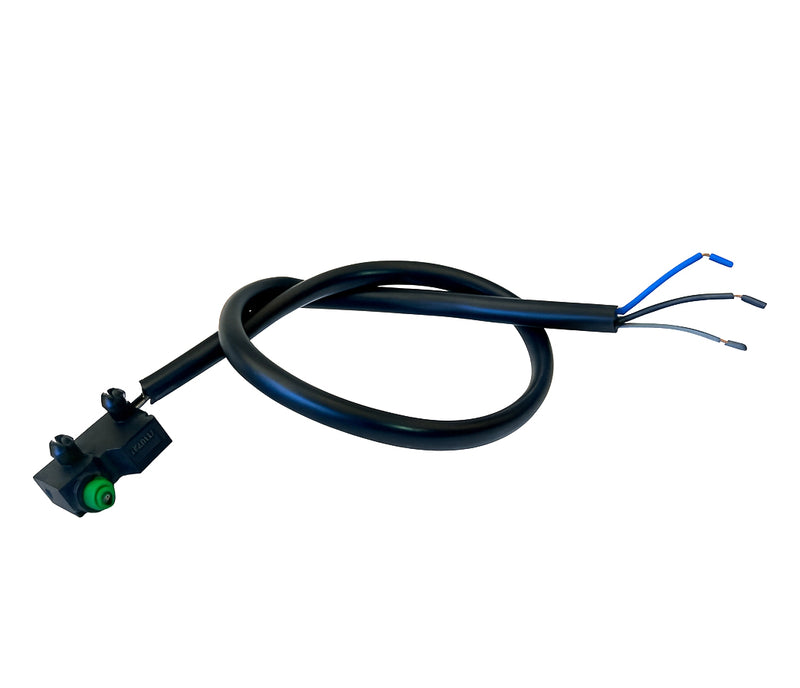

Dual-Function Micro Switch for Brembo Master Cylinders (also fits RCS) 1104671952F

Dual-Function Micro Switch for Brembo Master Cylinders (also fits RCS) 1104671952F

$55.95 - $55.95
$55.95
$55.95 - $55.95
$55.95

Non-Branded

The Dual-Function Micro Switch for Brembo RCS brake master cylinders is the evolution of the standard switch originally installed on Brembo pumps. Designed to be universal, it completely eliminates compatibility issues between the Brembo master cylinder and the motorcycle’s electrical system, thanks to its ability to manage both open-circuit and closed-circuit functions simultaneously.

How the Dual-Function Micro Switch Works ?

On standard Brembo master cylinders, the switch is normally pressed by the resting lever, keeping the circuit open. When the lever is pulled, the switch returns to its normal position and closes the circuit, activating the brake light.

With this new universal Micro Switch, you can freely choose how to connect it: – to close or open the circuit depending on your motorcycle’s electrical system, – or to replace the original dual-function switch installed on your bike.

Which Motorcycles Require the Dual-Function Micro Switch ?

This micro switch is essential for all motorcycles equipped with Cruise Control, either as standard or optional equipment. You can easily check it: if your original switch has three wires and your motorcycle features Cruise Control, then you need this Micro Switch to properly install a Brembo RCS brake master cylinder or other compatible Brembo pumps.

It is also required on all motorcycles equipped with an original switch featuring a Normally Open Contact.

It is not required for motorcycles in which the brake light function is managed by the ABS control unit (for example, many BMW models), since these systems do not use a traditional switch.

Technical Specifications

  • Pin spacing: 12 mm
  • 3-wire connection
  • High-quality materials resistant to heat and vibration
    • Blue wire: normally open switch
    • Grey wire: normally closed switch
    • Black wire: ground
  • Compatible with brake light and Cruise Control systems

Compatibility

  • All Brembo RCS brake master cylinders
  • Other Brembo master cylinders with standard 12 mm micro switch mounting

Micro Switch Functions

  • Normally Closed Contact: when removed from the master cylinder, the switch keeps the circuit closed. This is the typical setup used on most motorcycles. When the lever is at rest, the switch keeps the circuit open; when the lever is pulled, the switch returns to its normal position and closes the circuit, turning on the brake light.
  • Normally Open Contact: when removed from the pump, the switch keeps the circuit open. When the lever is at rest, the switch closes the circuit; pulling the lever opens it, activating the brake light or disabling the Cruise Control function.

In summary: this universal Micro Switch is the perfect solution for riders who wish to install a Brembo RCS master cylinder while maintaining full electrical compatibility, including on motorcycles equipped with Cruise Control.
