Jetprime Rear Hub for MV Agusta F3 F4 Brutale (JPMR001) (Free Delivery)

Original price $570.00 - Original price $570.00
Original price
$570.00 - $570.00
Current price $570.00

MV logo

Jetprime - Precision Control, Supreme Quality

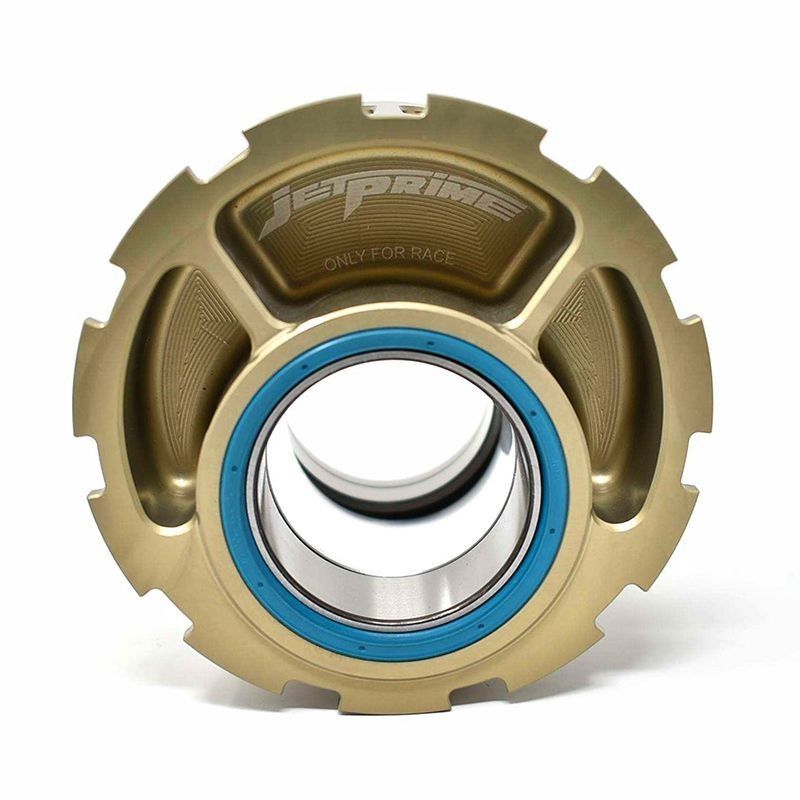

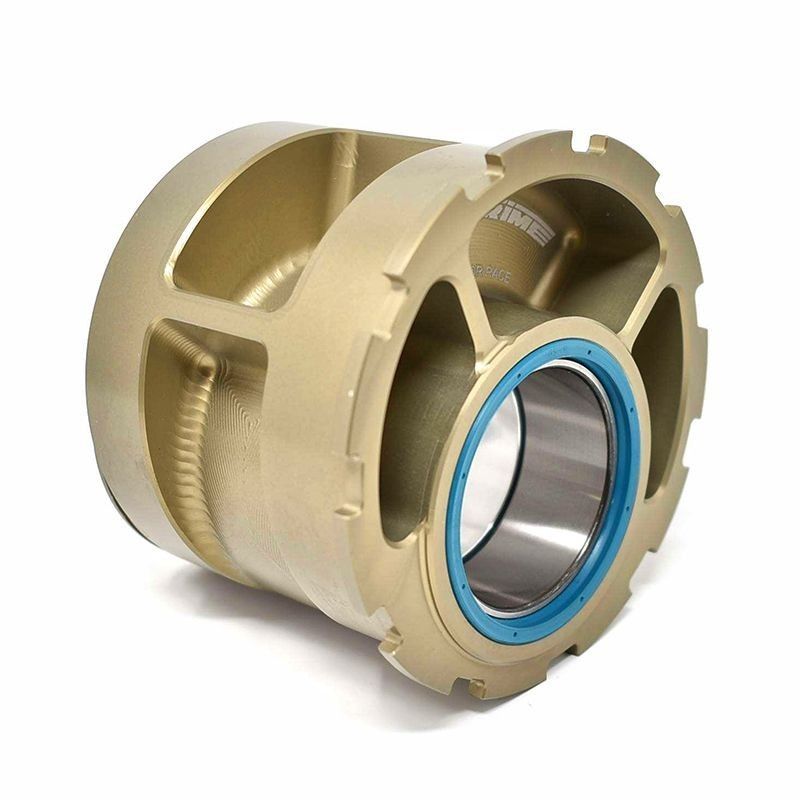

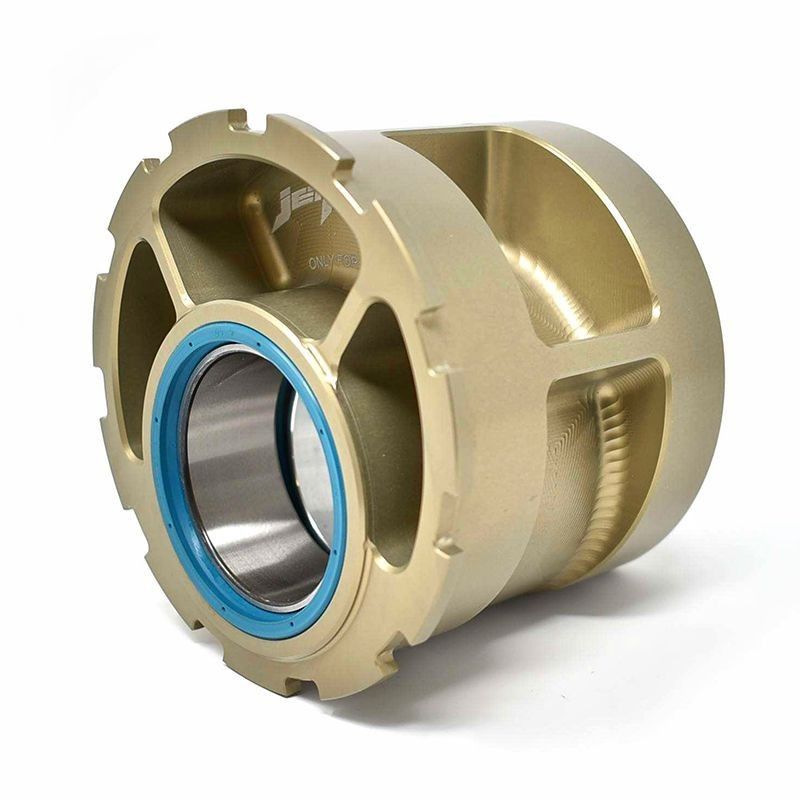

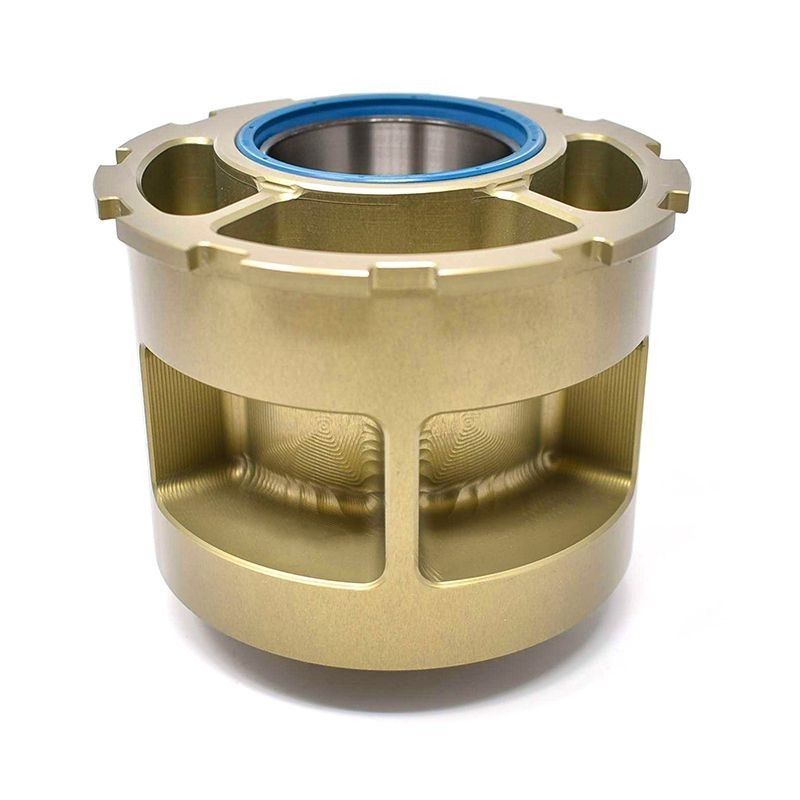

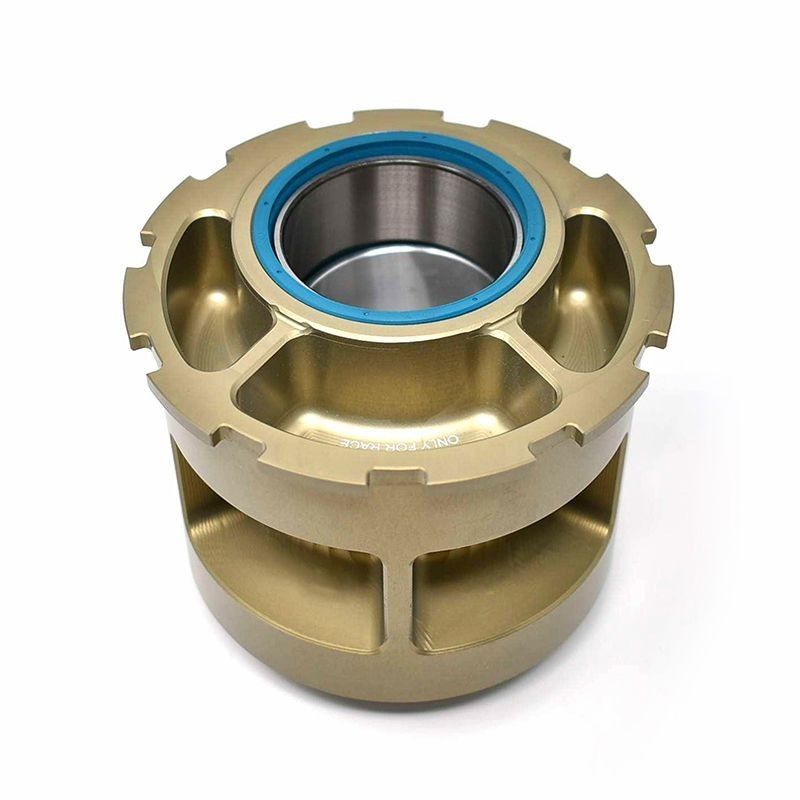

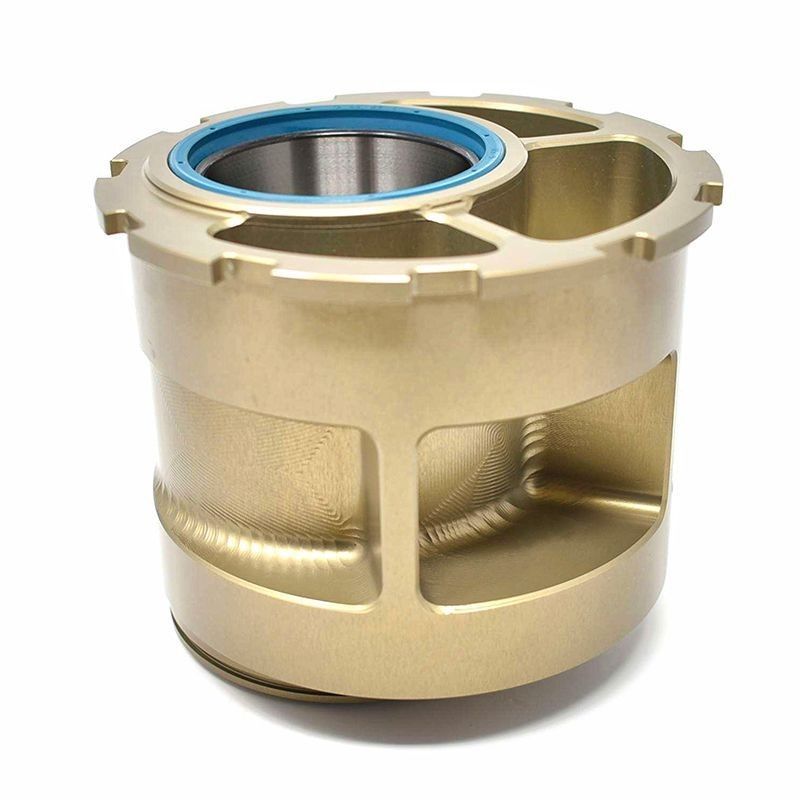

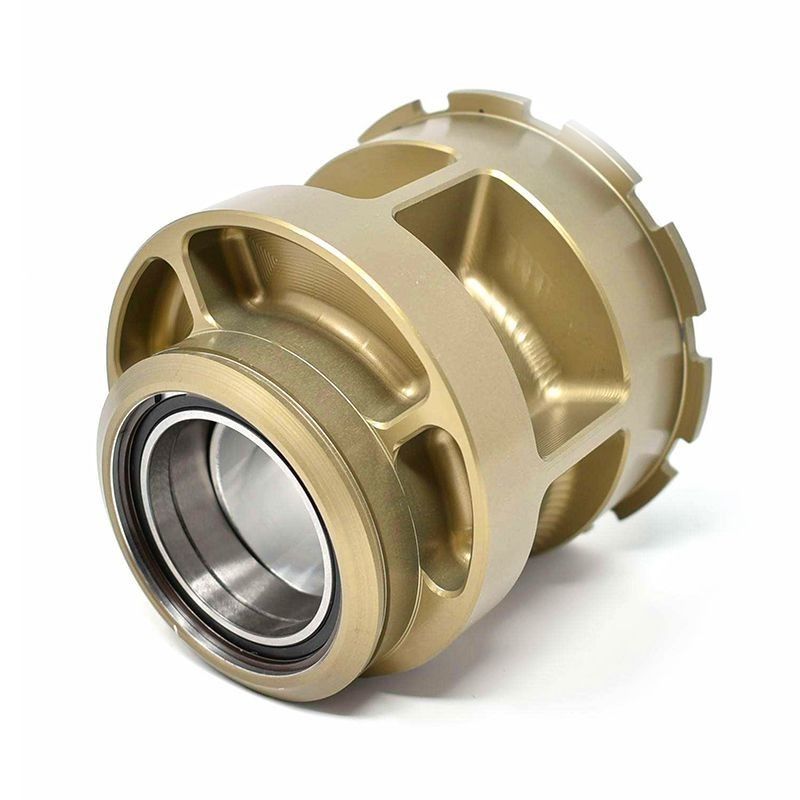

Jetprime Rear Hub for MV Agusta F3 F4 Brutale Dragster Rivale Stradale Turismo Veloce

Part No. JPMR001

Model compatibility

MV Agusta F4 750 1999 - 2003
MV Agusta F4 1000 2004 - 2006
MV Agusta F4 1078 2007
MV Agusta F4 312R 2007 - 2008
MV Agusta F4 R 2006 - 2007
MV Agusta Brutale 750 2003 - 2005
MV Agusta Brutal 910 2005 - 2008
MV Agusta Brutale 989R-1078RR 2008
MV Agusta Brutale 920 2011 - 2012
MV Agusta Brutale 990R 2010 - 2012
MV Agusta Brutale 1090 2013 - 2015
MV Agusta Brutale 1090R 2012 - 2015
MV Agusta Brutale 1090RR 2010 - 2015
MV Agusta F4 / R / RR 2010 - 2015
MV Agusta F4 RC / RC LH 2015 - 2019
MV Agusta F3 675 2012 - 2017
MV Agusta F3 800 2014 - 2017
MV Agusta Brutale 675 2012 - 2016
MV Agusta Brutale 800 / RR 2013 - 2017
MV Agusta Brutale Dragster 800 / RR 2014 - 2017
MV Agusta Rivale 800 2014 - 2016
MV Agusta Stradale 800 2015
MV Agusta Turismo Veloce 2015 - 2018

This Jetprime hub was designed and produced out of the need for a much stronger more rigid hub while also offering more flex; it is better designed and finished than the oem and other aftermarket rear hubs. Jetprime engineers worked with structure of the metal to keep weight down as much as physically possible without weakening the construction of the hub itself so it retains its integrity.

Avional alloy is used instead of 7025 ergal due to the fact that avional has almost the same tenacity of 7075 but it offers more flex in the metal itself where as 7025 has possibility of cracking under different conditions and loads and is not the best solution for construction of a rear hub.

Torque pressures are also significantly increased from the OEM version due to the construction and metal therefore any over-tightening of the pinch bolts excess of 40 nm will not damage the outer races of the internal bearings used. CNC machining avional is also used in the construction of components for supercars such as the Pagani and the quality speaks for itself.

The hub comes complete with a roller bearing on sprocket side with dual ball bearing setup on the wheel side which has been known to work perfectly in our upgraded hubs. Also included is high temp low friction bearing grease as a part of the kit so no additional products are needed to install this hub - it is a direct replacement. Service and maintenance intervals are retained same as the original schedule to keep the hub running at its optimum.
