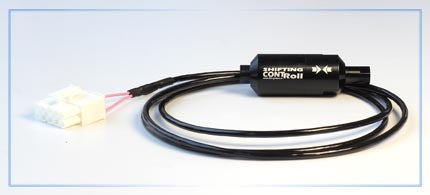

Shifting Controll Shift Sensor - Dual PUSH / PULL Type to suit Power Commander V
Quickshifter sensors are made of high strength aluminium alloy with anodized surface. We offer pull or push type. Switching force is preset for common motorcycles and it isn't adjustable. Sensor has M6 thread on both sides. One side has a right-hand thread, the other one both right-hand and left-hand thread (Dual Thread).
Bi-directional sensor has 2 NO type circuits with single point ground. It can be use with voltage outpuut ... 2,5V= standby, 0V=Pull, 5V=Push.
Lenght: 62mm
Diameter: 20mm
Length of cable: 110cm
Switching force: 140N ±10N
Weight: 65g
Power Commander V
Sensor is suitable for Power Commander V. Connect two wires to "SHIFTER" ports on PC V. The position of wires is arbitrary.
