RAM Small Tank Base With 1" Ball for Motorcycles (RAM-B-410U)

  • $55.95
Tax included.

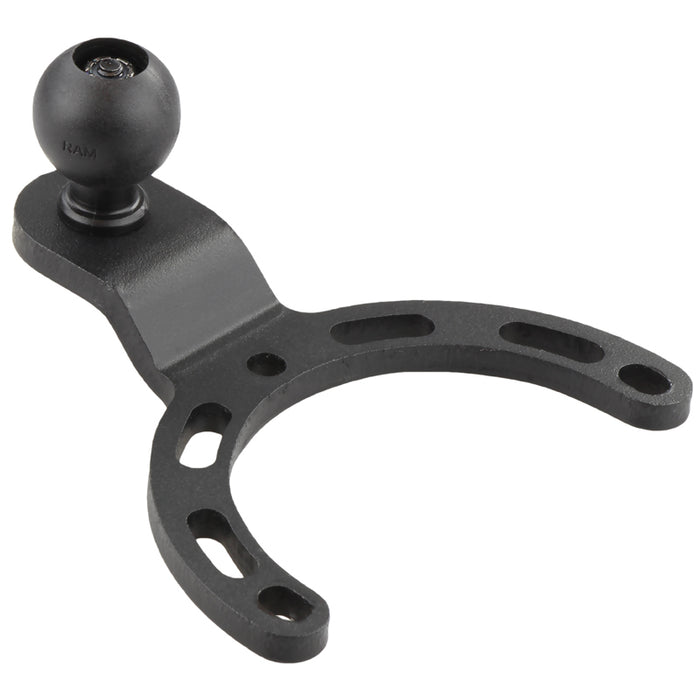

RAM Small Tank Base With 1" Ball for Motorcycles (RAM-B-410U)

This is a great low-profile way to attach any electronic device to your motorcycle where it is easily accessible. It connects directly to the standard petrol tank cap of any of the listed compatible motorcycles below (Honda, KTM, Suzuki, Yamaha). Includes all required fixings.

Will attach to any RAM 1" socket arm (see Related Products below).

Motorcycle Compatibility List (PDF)

  • Included Hardware:
    3 x M6-1.0 x 25MM Socket Head Cap Screw
    4 x M5-0.8 x 45MM Socket Head Cap Screw
    3 x M5-0.8 x 35MM Socket Head Cap Screw
    3 x M5-0.8 x 25MM Socket Head Cap Screw
    3 x M5-0.8 x 20MM Socket Head Cap Screw
    3 x M5-0.8 x 16MM Socket Head Cap Screw
    4 x M5 Stainless Steel Flat Washer
    3 x M6 Stainless Steel Flat Washer
  • Distance between two side holes: 90mm (centre to centre)
  • Distance between top hole and side holes: 63mm (centre to centre)
  • Material: Powder Coated Marine Grade Aluminium & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Installation Instructions (PDF)

Demonstration Video
